Part Number: ADS8371
Description: The ADS8371 is an 16-bit, 750 kHz A/D converter. The device includes a 16-bit capacitor-based SAR A/D converter with in...
- Table of contents:
ADS8371
-
Suppliers
DataSheet
General Description
ADS8371 General Description
The ADS8371 is an 16-bit, 750 kHz A/D converter. The device includes a 16-bit capacitor-based SAR A/D converter with inherent sample and hold. The ADS8371 offers a full 16-bit interface or an 8-bit bus option using two read cycles.
The ADS8371 is available in a 48-lead TQFP package and is characterized over the industrial −40°C to 85°C temperature range.
ADS8371 Maximum Ratings
|
UNIT | |||
| Voltage |
+IN to AGND |
−0.4 V to +VA + 0.1 V | |
| −IN to AGND |
−0.4 V to 0.5 V | ||
| Voltage range |
+VA to AGND |
−0.3 V to 7 V | |
| +VBD to BDGND |
−0.3 V to 7 V | ||
| +VA to +VBD |
−0.3 V to 2.55 V | ||
| Digital input voltage to BDGND |
−0.3 V to +VBD + 0.3 V | ||
| Digital output voltage to BDGND |
−0.3 V to +VBD + 0.3 V | ||
| Operating free-air temperature range, TA |
−40°C to 85°C | ||
| Storage temperature range, Tstg |
−65°C to 150°C | ||
| Junction temperature (TJmax) |
150°C | ||
| TQFP package |
Power dissipation |
(TJMax − TA)/JA | |
| JAthermal impedance |
86°C/W | ||
Lead temperature, soldering |
Vapor phase (60 sec) |
215°C | |
| Infrared (15 sec) |
215°C | ||
ADS8371 Features
750-KSPS Sample Rate
High Linearity:
− +0.9 LSB INL Typ, ±1.5 LSB Max
− −0.4/+0.6 LSB DNL Typ, ±1 LSB Max
Onboard Reference Buffer and Conversion Clock
0 V to 4.096 V Unipolar Inputs
Low Noise: 88 dB SNR
High Dynamic Range: 110 dB SFDR
Very Low Offset and Offset Drift
Low Power: 130 mW at 750 KSPS
Wide Buffer Supply, 2.7 V to 5.25 V
Flexible 8-/16-Bit Parallel Interface
Direct Pin Compatible With
ADS8381/ADS8383
48-Pin TQFP Package
ADS8371 Typical Application
Medical Instruments
Optical Networking
Transducer Interface
High Accuracy Data Acquisition Systems
Magnetometers
Optical Networking
Transducer Interface
High Accuracy Data Acquisition Systems
Magnetometers

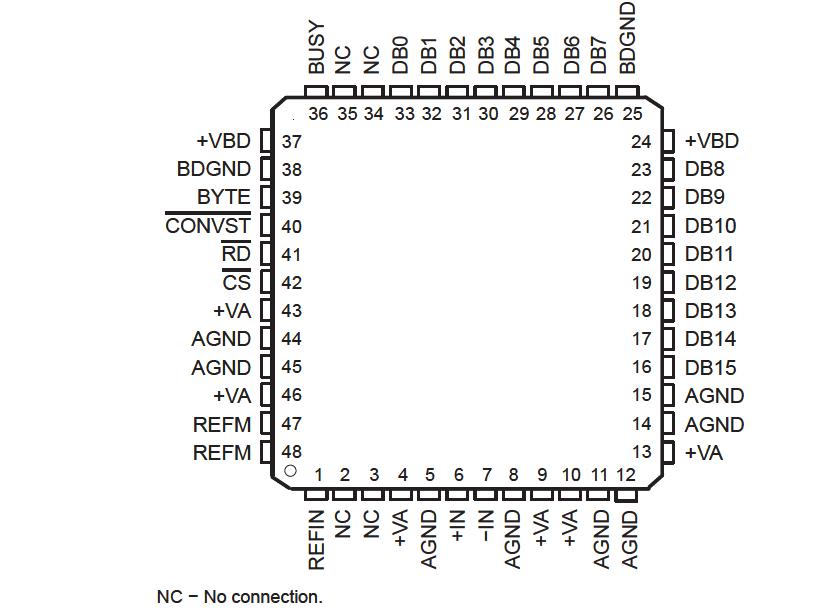

ADS8371 Connection Diagram
ADS8371
