Part Number: ADS8381









Description: The ADS8381 is an 18-bit, 580 kHz A/D converter. The device includes a 18-bit capacitor-based SAR A/D ...


Urgent Purchase

ADS8381 General Description


The ADS8381 is an 18-bit, 580 kHz A/D converter. The device includes a 18-bit capacitor-based SAR A/D converter with inherent sample and hold. The ADS8381 offers a full 18-bit interface, a 16-bit option where data is read using two read cycles, or an 8-bit bus option using three read cycles.

The ADS8381 is available in a 48-lead TQFP package and is characterized over the industrial −40°C to 85°C temperature range.

ADS8381 Maximum Ratings


UNIT
Voltage +IN to AGND
−0.4 V to +VA + 0.1 V
−IN to AGND
−0.4 V to 0.5 V
Voltage range +VA to AGND
−0.3 V to 7 V
+VBD to BDGND
−0.3 V to 7 V
+VA to +VBD
−0.3 V to 2.55 V
Digital input voltage to BDGND
−0.3 V to +VBD + 0.3 V
Digital output voltage to BDGND
−0.3 V to +VBD + 0.3 V
Operating free-air temperature range, TA
−40°C to 85°C
Storage temperature range, Tstg
−65°C to 150°C
Junction temperature (TJ max)
150°C
TQFP package Power dissipation
(TJMax − TA)/JA
JA thermal impedance
86°C/W
Lead temperature, soldering Vapor phase (60 sec)
215°C
Infrared (15 sec)
220°C
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

ADS8381 Features

· 580-kHz Sample Rate
· 18-Bit NMC Ensured Over Temperature
· Zero Latency
· Low Power: 110 mW at 580 kHz
· Unipolar Input Range
· Onboard Reference Buffer
· High-Speed Parallel Interface
· Wide Digital Supply, 2.7 V to 5.25 V
·8-/16-/18-Bit Bus Transfer
·48-Pin TQFP Package

ADS8381 Typical Application

· Medical Instruments
· Optical Networking
· Transducer Interface
· High Accuracy Data Acquisition Systems
· Magnetometers

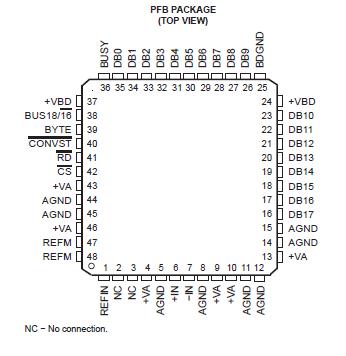

ADS8381 Connection Diagram

ADS8381 Connection Diagram

ADS8381 datasheet

ADS8381
PDF/DataSheet Download

Find ADS8381 Suppliers
