Purchase ADS8616A8A, In-stock ADS8616A8A From SeekIC.
Part Number: ADS8616A8A
Description: The ADS8616A8A are four-bank Synchronous DRAMs organized as 4,194,304 words x 16 bits x 4 banks,Synchr...
- Table of contents:
ADS8616A8A
-
Suppliers
DataSheet
General Description
ADS8616A8A General Description
The ADS8616A8A are four-bank Synchronous DRAMs organized as 4,194,304 words x 16 bits x 4 banks,Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle.
Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a variety of high bandwidth high performance memory system applications.
ADS8616A8A Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
| Voltage on any pin relative to Vss |
VIN,Vout |
-0.3 ~VDD+0.3 |
V |
| Voltage on VDD supply relative to Vss |
VDD,VDDQ |
-0.3 ~ 4.6 |
V |
| Storage temperature |
TSTG |
-55 ~ +150 |
|
| Power dissipation |
PD |
1 |
W |
| Short circuit current |
IOUT |
50 |
mA |
Note : Permanent device damage may occur if ABSOLUTE MAXIMUM RATING are exceeded.Functional operation should be restricted to recommended operating condition.Exposure to higher than recommended voltage for extended periods of time could affect device reliability.
ADS8616A8A Features
•JEDEC standard LVTTL 3.3V power supply
•MRS Cycle with address key programs
-CAS Latency (2 & 3)
-Burst Length (1,2,4,8,& full page)
-Burst Type (sequential & Interleave)
•4 banks operation
•All inputs are sampled at the positive edge of the system clock
•Burst Read single write operation
•Auto & Self refresh
•DQM for masking
•8192 Refresh Cycles
•Package:54-pins 400 mil TSOP-Type II
•MRS Cycle with address key programs
-CAS Latency (2 & 3)
-Burst Length (1,2,4,8,& full page)
-Burst Type (sequential & Interleave)
•4 banks operation
•All inputs are sampled at the positive edge of the system clock
•Burst Read single write operation
•Auto & Self refresh
•DQM for masking
•8192 Refresh Cycles
•Package:54-pins 400 mil TSOP-Type II

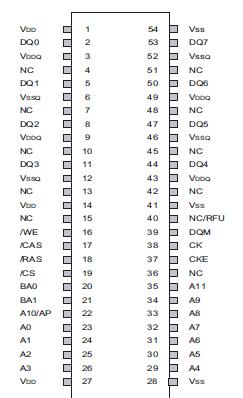

ADS8616A8A Connection Diagram
ADS8616A8A-75
PDF/DataSheet Download
- Datasheet: ADS8616A8A-75
- File Size: 563740 KB
- Manufacturer: A-DATA [A-Data Technology]
- Click here to Download
