General Description
ADS900 General Description
The ADS900 is a high speed pipelined analog-todigital converter. This complete converter includes a high bandwidth track/hold, a 10-bit quantizer and an internal reference.
The ADS900 employs digital error correction techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for telecommunications, video and test instrumentation applications.
This high performance A/D converter is specified for performance at a 20MHz sampling rate. The ADS900 is available in a 28-lead SSOP package.
ADS900 Maximum Ratings
+VS ......................................................................................................+6V
Analog Input ..............................................................................+VS +0.3V
Logic Input .................................................................................+VS +0.3V
Case Temperature ......................................................................... +100
Junction Temperature .................................................................... +150
Storage Temperature .....................................................................+150
Analog Input ..............................................................................+VS +0.3V
Logic Input .................................................................................+VS +0.3V
Case Temperature ......................................................................... +100
Junction Temperature .................................................................... +150
Storage Temperature .....................................................................+150
ADS900 Features
· +2.7V TO +3.7V SUPPLY OPERATION
· INTERNAL REFERENCE
· LOW POWER: 52mW at +3V
·SINGLE-ENDED INPUT RANGE: 1V to 2V
· WIDEBAND TRACK/HOLD: 350MHz
· 28-LEAD SSOP PACKAGE
· INTERNAL REFERENCE
· LOW POWER: 52mW at +3V
·SINGLE-ENDED INPUT RANGE: 1V to 2V
· WIDEBAND TRACK/HOLD: 350MHz
· 28-LEAD SSOP PACKAGE
ADS900 Typical Application
· PORTABLE INSTRUMENTATION
· IF AND BASEBAND COMMUNICATIONS
· CABLE MODEMS
· SET-TOP BOXES
·PORTABLE TEST EQUIPMENT
· COMPUTER SCANNERS
· IF AND BASEBAND COMMUNICATIONS
· CABLE MODEMS
· SET-TOP BOXES
·PORTABLE TEST EQUIPMENT
· COMPUTER SCANNERS

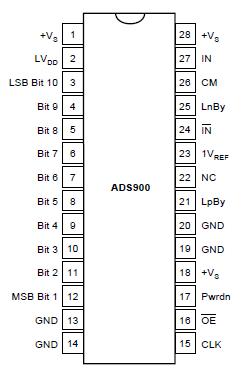

ADS900 Connection Diagram
ADS900
