Part Number: ADSP-21mod870



MFG: AD

Package Cooled: BGA

D/C: 0630+

Description: The ADSP-21mod870 is a single-chip Internet gateway pro-cessor optimized for implementation of a complete V.34/56K mode...


Urgent Purchase

ADSP-21mod870 General Description


The ADSP-21mod870 is a single-chip Internet gateway pro-cessor optimized for implementation of a complete V.34/56K modem. All data pump and controller functions can be imple-mented on a single chip, offering the lowest power consumption and highest possible modem port density.

The ADSP-21mod870, shown in the Functional Block Dia-gram, combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities and on-chip program and data memory.

ADSP-21mod870 Maximum Ratings

Supply Voltage . . . . . . . . . . . . . . . . .  .. . . . . .  0.3 V to +4.6 V
Input Voltage  . . . . . . . . . . . . . . . . . . . .  0.5 V to VDD + 0.5 V
Output Voltage Swing  . . . . . . . . . . . ..   .0.5 V to VDD + 0.5 V
Operating Temperature Range (Ambient)  .  .40°C to +85°C
Storage Temperature Range  . . . . . . . . .  . 65°C to +150°C
Lead Temperature (5 sec) LQFP . . . . . . . . . . . . . . . . .  +280°C

ADSP-21mod870 Features

Complete Single-Chip Internet Gateway Processor (No External Memory Required)
Implements V.34/V.90 Data/FAX Modem Including Controller and Datapump
19 ns Instruction Cycle Time @ 3.3 V, 52 MIPS Sustained Performance
Open Architecture Platform Extensible to Voice Over IP and Other Applications
Low Power Dissipation, 80 mW (Typical) for Digital Modem
Power-Down Mode Featuring Low CMOS Standby
Power Dissipation

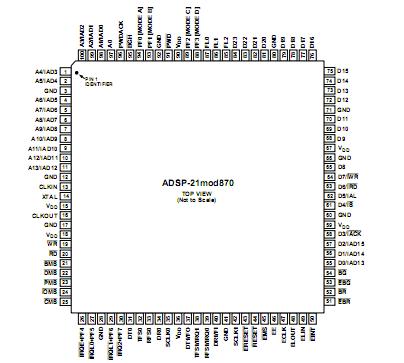

ADSP-21mod870 Connection Diagram

ADSP-21mod870 Connection Diagram

ADSP-21mod870 datasheet

ADSP-21MOD870
PDF/DataSheet Download

Find ADSP-21mod870 Suppliers
