General Description
ADT7411 General Description
The ADT7411 combines a 10-bit temperature-to-digital converter and a 10-bit 8-channel ADC in a 16-lead QSOP package.
This includes a band gap temperature sensor and a 10-bit ADC to monitor and digitize the temperature reading to a resolution of 0.25°C. The ADT7411 operates from a single 2.7 V to 5.5 V supply. The input voltage on the ADC channels has a range of 0 V to 2.25 V and the input bandwidth is dc. The reference for the ADC channels is derived internally. The ADT7411 provides two serial interface options: a 4-wire serial interface compatible with SPI, QSPI, MICROWIRE, and DSP interface standards, and a 2-wire SMBus/I2C interface. It features a standby mode that is controlled via the serial interface.
The ADT7411's wide supply voltage range, low supply current, and SPI/I2C compatible interface make it ideal for a variety of applications, including personal computers, office equipment, and domestic appliances.
ADT7411 Maximum Ratings
VDD to GND................... 0.3 V to +7 V
Analog Input Voltage to GND....0.3 V to VDD + 0.3 V
Digital Input Voltage to GND.. ..0.3 V to VDD + 0.3 V
Digital Output Voltage to GND. ..0.3 V to VDD + 0.3 V
Reference Input Voltage to GND..0.3 V to VDD + 0.3 V
Operating Temperature Range..... 40°C to +120°C
Storage Temperature Range...... 65°C to +150°C
Junction Temperature................. 150°C
16-Lead QSOP Package
Power Dissipation1............(TJ max TA)/JA
Thermal Impedance2
JA Junction-to-Ambient............105.44°C/W
JC Junction-to-Case............... 38.8°C/W
IR Reflow Soldering
Peak Temperature............ 220°C (0°C/5°C)
Time at Peak Temperature........10 sec to 20 sec
Ramp-Up Rate............. 2°C/sec to 3°C/sec
Ramp-Down Rate..................6°C/sec
Analog Input Voltage to GND....0.3 V to VDD + 0.3 V
Digital Input Voltage to GND.. ..0.3 V to VDD + 0.3 V
Digital Output Voltage to GND. ..0.3 V to VDD + 0.3 V
Reference Input Voltage to GND..0.3 V to VDD + 0.3 V
Operating Temperature Range..... 40°C to +120°C
Storage Temperature Range...... 65°C to +150°C
Junction Temperature................. 150°C
16-Lead QSOP Package
Power Dissipation1............(TJ max TA)/JA
Thermal Impedance2
JA Junction-to-Ambient............105.44°C/W
JC Junction-to-Case............... 38.8°C/W
IR Reflow Soldering
Peak Temperature............ 220°C (0°C/5°C)
Time at Peak Temperature........10 sec to 20 sec
Ramp-Up Rate............. 2°C/sec to 3°C/sec
Ramp-Down Rate..................6°C/sec
ADT7411 Features
`10-bit temperature-to-digital converter
`10-bit 8-channel ADC
`DC input bandwidth
`Input range: 0 V to 2.25 V, and 0 V to VDD
`Temperature range: 40°C to +120°C
`Temperature sensor accuracy of ±0.5°C
`Supply range: 2.7 V to 5.5 V
`Power-down current 1 A
`Internal 2.25 VREF option
`Double-buffered input logic
`I2C, SPI, QSPI™, MICROWIRE™, and DSP compatible
`4-wire serial interface
`SMBus packet error checking (PEC) compatible
`16-lead QSOP package
`10-bit 8-channel ADC
`DC input bandwidth
`Input range: 0 V to 2.25 V, and 0 V to VDD
`Temperature range: 40°C to +120°C
`Temperature sensor accuracy of ±0.5°C
`Supply range: 2.7 V to 5.5 V
`Power-down current 1 A
`Internal 2.25 VREF option
`Double-buffered input logic
`I2C, SPI, QSPI™, MICROWIRE™, and DSP compatible
`4-wire serial interface
`SMBus packet error checking (PEC) compatible
`16-lead QSOP package
ADT7411 Typical Application
·Portable battery-powered instruments
·Personal computers
·Smart battery chargers
·Telecommunications systems electronic test equipment
·Domestic appliances
·Process control
·Personal computers
·Smart battery chargers
·Telecommunications systems electronic test equipment
·Domestic appliances
·Process control

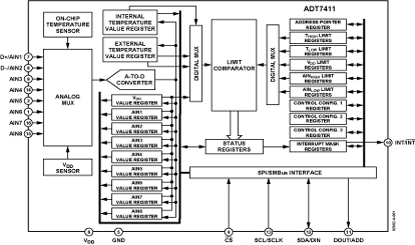

ADT7411 Connection Diagram
ADT7411
PDF/DataSheet Download
- Datasheet: ADT7411
- File Size: 467067 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
