Features: `Low power operation`5 V operation`1.2 mA per channel max @ 0 Mbps to 2 Mbps`3.5 mA per channel max @ 10 Mbps`32 mA per channel max @ 90 Mbps`3 V operation`0.8 mA per channel max @ 0 Mbps to 2 Mbps`2.2 mA per channel max @ 10 Mbps`20 mA per channel max @ 90 Mbps`Bidirectional communicati...
ADuM1300: Features: `Low power operation`5 V operation`1.2 mA per channel max @ 0 Mbps to 2 Mbps`3.5 mA per channel max @ 10 Mbps`32 mA per channel max @ 90 Mbps`3 V operation`0.8 mA per channel max @ 0 Mbps ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Max Operating Temp (°C) | 125Deg |
Insulation Rating (kVrms) | 2.5kV rms |
# Ch | 3 |
Isolation Voltage (Vrms) | 2500V rms |
Pulse Width Distort (ns) | 2ns |
Max Prop Delay (ns) | 32ns |
Isolated Output (V)min | 2.7V |
Isolated Output (V)max | 5.5V |
Output Default State | High |

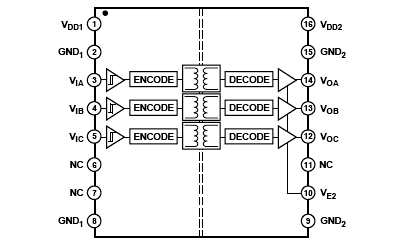

The ADuM130x are 3-channel digital isolators based on Analog Devices' iCoupler® technology. Combining high speed CMOS and monolithic transformer technology, these isolation compo-nents provide outstanding performance characteristics superior to alternatives such as optocoupler devices.
By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discretes is eliminated with these iCoupler products. Furthermore, iCoupler ADuM130x devices consume one-tenth to one-sixth the power of optocouplers at comparable signal data rates.
The ADuM130x isolators provide three independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). Both models operate with the supply voltage on either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. In addition, the ADuM130x provides low pulse-width distortion (<2 ns for CRW grade) and tight channel-to-channel matching (<2 ns for CRW grade). Unlike other optocoupler alternatives, the ADuM130x isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and during power-up/power-down conditions.
