Part Number: ADUM3300



MFG: ADI



D/C: 09

Description: The ADuM330x* are 3-channel digital isolators based on the Analog Devices, Inc. iCoupler? technology. Combining high speed CMOS and...


Urgent Purchase

ADUM3300 General Description


The ADuM330x* are 3-channel digital isolators based on the Analog Devices, Inc. iCoupler? technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation

ADUM3300 Maximum Ratings

Max Operating Temp (°C) 105Deg
Insulation Rating (kVrms) 2.5kV rms
Pulse Width Distort (ns) 2ns
Max Prop Delay (ns) 32ns
Isolated Output (V)min 2.7V
Isolated Output (V)max 5.5V
Output Default State High

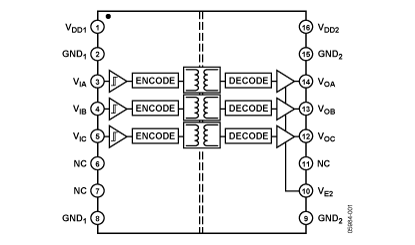

ADUM3300 Connection Diagram

ADUM3300 Connection Diagram
