Part Number: ADUM3401



MFG: ADI



D/C: 09

Description: The ADuM340x* are 4-channel digital isolators based on the Analog Devices, Inc. iCoupler ? technology. Combining high speed CMOS an...


Urgent Purchase

ADUM3401 General Description


The ADuM340x* are 4-channel digital isolators based on the Analog Devices, Inc. iCoupler ? technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation

ADUM3401 Maximum Ratings

Max Operating Temp (°C) 105Deg
Insulation Rating (kVrms) 2.5kV rms
# Ch 4
Max Prop Delay (ns) 32ns
Isolated Output (V)min 2.7V
Isolated Output (V)max 5.5V
Output Default State High

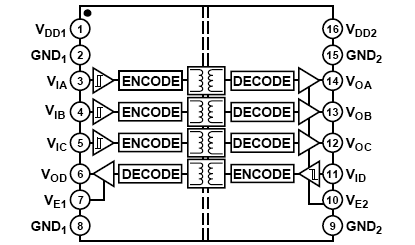

ADUM3401 Connection Diagram

ADUM3401 Connection Diagram
