Features: isoPower, integrated isolated dc-to-dc converter Regulated 3.3 V or 5 V output Up to 500 mW output power16-lead SOIC package with >8 mm creepageHigh temperature operation: 105 maximumHigh common-mode transient immunity: >25 kV/sThermal overload protectionSafety and regulatory appro...
ADuM5000: Features: isoPower, integrated isolated dc-to-dc converter Regulated 3.3 V or 5 V output Up to 500 mW output power16-lead SOIC package with >8 mm creepageHigh temperature operation: 105 maximumHi...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Max Operating Temp (°C) | 105Deg |
Insulation Rating (kVrms) | 2.5kV rms |
# Ch | 0 |
Isolated Output (V)min | 3V |
Isolated Output (V)max | 5.5V |

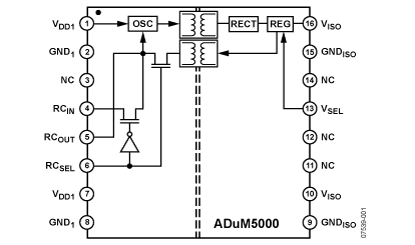

The ADuM5000 is an isolated dc-to-dc converter based on the Analog Devices, Inc., iCoupler® technology. The dc-to-dc converter in this device provides regulated, isolated power in several combi- nations of input and output voltage as listed in Table 1. The Analog Devices chip-scale transformer iCoupler technology ransfers isolated power in this dc-to-dc converter with up to 33% efficiency. The result is a small form factor, total isolation solution.
Higher output power levels are obtained by using the ADuM5000 to augment the power output of ADuM5401, ADuM5402, ADuM5403, ADuM5404, and ADuM520x iCouplers with isoPower®. isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to the ADuM5000 application note for board layout recommendations.
