Features: isoPower integrated, isolated dc-to-dc converterRegulated 5 V output500 mW output powerQuad dc-to-25 Mbps (NRZ) signal isolation channelsSchmitt trigger inputs16-lead SOIC package with >8 mm creepageHigh temperature operation: 105°C maximumHigh common-mode transient immunity: >25 k...
ADuM5400: Features: isoPower integrated, isolated dc-to-dc converterRegulated 5 V output500 mW output powerQuad dc-to-25 Mbps (NRZ) signal isolation channelsSchmitt trigger inputs16-lead SOIC package with >...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Max Operating Temp (°C) | 105Deg |
Insulation Rating (kVrms) | 25kV rms |
# Ch | 4 |
Max Prop Delay (ns) | 60ns |
Isolated Output (V)min | 3V |
Isolated Output (V)max | 5.5V |
Power (mW) | 500mW |
Parameter | Rating |
Storage Temperature (TST) Ambient Operating Temperature (TA) Supply Voltages (VDD1, VISO)1 VISO Supply Current2 −40 to +85 −40 to +105 Input Voltage (VIA, VIB, VIC, VID)1, 3 Output Voltage (VOA, VOB, VOC, VOD)1, 3 Average Output Current per Data Output Pin4 Common-Mode Transients5 |
−55 to +150 −40 to +85 −0.5 V to +7.0 V 100 mA 60 mA −0.5 V to VDDI + 0.5 V −0.5 V to VISO + 0.5 V −10 mA to +10 mA −100 kV/s to +100 kV/s |
1 Each voltage is relative to its respective ground.
2 VISO provides current for dc and dynamic loads on the Side 2 I/O channels. This current must be included when determining the total VISO supply current.
3 VDD1 and VISO refer to the supply voltages on the input and output sides of a given channel, espectively. See the section. PCB Layout
4 See for maximum rated current values for various temperatures. Figure 2 5 Refers to common-mode transients across the insulation barrier. Common-mode transients exceeding the absolute maximum ratings may cause latch-up or permanent damage.

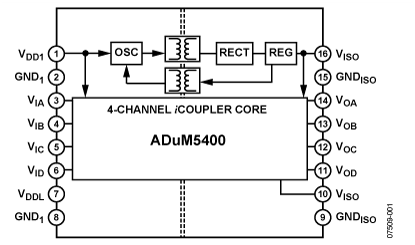

The ADuM54001 device is a quad-channel digital isolator with isoPower®, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc., iCoupler® technology, the dc-to-dc converter provides up to 500 mW of regulated, isolated power with 5.0 V input and 5.0 V output voltages. This architecture eliminates the need for a separate, isolated dc-to-dc converter in low power, isolated designs. The iCoupler chip scale transformer technology is used to isolate the logic signals and the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.
The ADuM5400 isolator provides four independent isolation channels in two speed grades (see the Ordering Guide for more information).
isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to the ADuM5400 application note for details on board layout recommendations.
