Features: isoPower integrated isolated high-side supply275 mW isolated dc-to-dc converter200 mA output sink current, 200 mA output source currentHigh common-mode transient immunity: >50 kV/sWide-body 16-lead SOIC packageSafety and regulatory approvals (pending)UL recognition3750 V rms for 1 min...
ADuM6132: Features: isoPower integrated isolated high-side supply275 mW isolated dc-to-dc converter200 mA output sink current, 200 mA output source currentHigh common-mode transient immunity: >50 kV/sWide-...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Max Operating Temp (°C) | 85Deg |
Insulation Rating (kVrms) | 3.75kV rms |
# Ch | 1 |
Max Prop Delay (ns) | 100ns |
Isolated Output (V)min | 12V |
Isolated Output (V)max | 18V |
Power (mW) | 275W |
Parameter | Rating |
Storage Temperature Range, TST Ambient Operating Temperature Range, TA Input Supply Voltage, VDDL, VDD1 Channel A, Channel B Supply Voltage, VDDA, VDDB1 Input Voltage, VIA, VIB1 Output Voltage, VOA1 Output Voltage, VOB1 Average DC Output Current, IOA, IOB Peak Output Current, IOA, IOB Common-Mode Transients2 |
−55 to +150 −40 to +85 −0.5 V to +7.0 V −0.5 V to +27 V −0.5 V to VDDL + 0.5 V −0.5 V to VISO + 0.5 V −0.5 V to VDDB + 0.5 V −10 mA to +10 mA −200 mA to +200 mA −100 kV/s to +100 kV/s |

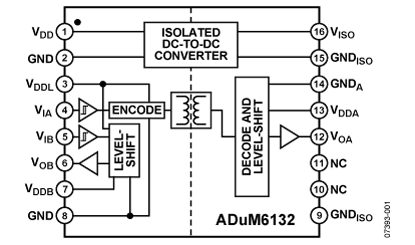

The ADuM61321 is an isolated half-bridge gate driver that employs the Analog Devices, Inc., iCoupler® technology to provide an isolated high-side driver with an integrated 275 mW high-side supply. This supply, provided by an internal isolated dc-to-dc converter, powers not only the ADuM6132 high-side output but also any external buffer circuitry that is commonly used with the ADuM6132. This functionality eliminates the cost, space, and performance issues associated with external supply configurations such as a bootstrap circuit.
The architecture of the ADuM6132 isolates the high-side channel and the high-side power from the control and low- side interface circuitry. Care has been taken to ensure close matching between the high-side and low-side driver timing characteristics to reduce the need for a dead time margin.
In comparison to gate drivers that employ high voltage level translation methodologies, the ADuM6132 offers the benefit of true, galvanic isolation. The differential voltage between high-side and low-side channels can be as high as 800 V with good insulation lifetime (see Table 12).
isoPower® uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to the ADuM6132 Application Note for details on board layout considerations.
