ADV101

Features: ·80 MHz Pipelined Operation·Triple 8-Bit D/A Converters·RS-343A/RS-170 Compatible Outputs·TTL Compatible Inputs·+5 V CMOS Monolithic Construction·40-Pin DIP or 44-Pin PLCC Package·Plug-In Replacement for BT101·Power Dissipation: 400 mWApplication·High Resolution Color Graphics·CAE/CAD/CA...

product image

ADV101 Picture
See larger image
SeekIC No. : 004278046 Detail

ADV101: Features: ·80 MHz Pipelined Operation·Triple 8-Bit D/A Converters·RS-343A/RS-170 Compatible Outputs·TTL Compatible Inputs·+5 V CMOS Monolithic Construction·40-Pin DIP or 44-Pin PLCC Package·Plug-In ...

ADV101 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADV101
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 ·80 MHz Pipelined Operation
 ·Triple 8-Bit D/A Converters
 ·RS-343A/RS-170 Compatible Outputs
 ·TTL Compatible Inputs
 ·+5 V CMOS Monolithic Construction
 ·40-Pin DIP or 44-Pin PLCC Package
 ·Plug-In Replacement for BT101
 ·Power Dissipation: 400 mW


Application

 ·High Resolution Color Graphics
 ·CAE/CAD/CAM Applications
 ·Image Processing
 ·Instrumentation
 ·Video Signal Reconstruction
 ·Desktop Publishing


Pinout

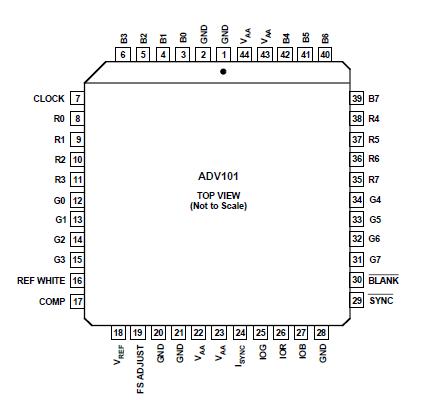

Connection Diagram


Specifications

VAA to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +7 V
Voltage on Any Digital Pin . . . . . . . .  GND 0.5 V to VAA +0.5 V
Ambient Operating Temperature (TA) . . . . . . . .  .0°C to +70°C
Storage Temperature (TS) . . . . . . . . . . . . . .  65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . .  . .+150°C
Soldering Temperature (10 secs) . . . . . . . . . . . . . . . . . . 300°C
Vapor Phase Soldering (1 minute) . . . . . . . . . . . . . . . . . 220°C
IOR, IOB, IOG, ISYNC to GND2 . . . . . . . . . . . . . . . . . 0 V to VAA


Description

The ADV101 is a digital-to-analog video converter on a single onolithic chip. The part is specifically designed for high resolution olor graphics and video systems. It consists of three, igh speed, 8-bit, video D/A converters (RGB); a standard TTL nput interface and high impedance, analog output, current ources.

The ADV101 has three separate, 8-bit, pixel input ports, one ach for red, green and blue video data. Additional video input ontrols on the part include sync, blank and reference white. A ingle +5 V supply, an external 1.23 V reference and pixel clock nput are all that are required to make the part operational.

The ADV101 is capable of generating RGB video output signals, hich are compatible with RS-343A and RS-170 video tandards, without requiring external buffering.

The ADV101 is fabricated in a +5 V CMOS process. Its monolithic MOS construction ensures greater functionality with low ower dissipation. The part is packaged in both a 0.6", 40-pin lastic DIP and a 44-pin plastic leaded (J-lead) chip carrier, LCC.
