Part Number: ADV202
Description: The ADV202 is a single-chip JPEG2000 codec targeted for video and high bandwidth image compression app...
- Table of contents:
ADV202
-
Suppliers
DataSheet

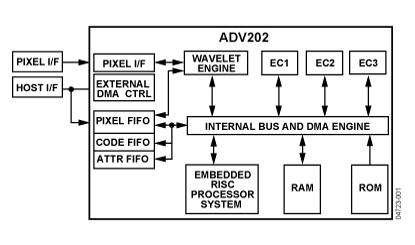

General Description
ADV202 General Description
The ADV202 is a single-chip JPEG2000 codec targeted for video and high bandwidth image compression applications that can benefit from the enhanced quality and feature set provided by the JPEG2000 (J2K)-ISO/IEC15444-1 image compression standard. The part implements the computationally intensive operations of the JPEG2000 image compression standard as well as providing fully compliant code-stream generation for most applications.
The ADV202's dedicated video port provides glueless connection to common digital video standards such as ITU.R-BT656, SMPTE125M, SMPTE293M [525p], ITU.R-BT1358 [625p], SMPTE274M[1080i], or SMPTE296M[720p]. A variety of other high speed synchronous pixel and video formats can also be supported using the programmable framing and validation signals.
ADV202 Features
·Complete single-chip JPEG2000 compression and decompression solution for video and still images
·Patented SURF™ (spatial ultraefficient recursive filtering) technology enables low power and low cost wavelet based compression
·Supports both 9/7 and 5/3 wavelet transforms with up to 6 levels of transform
·Programmable tile/image size with widths up to 2048 pixels in 3-component 4:2:2 interleaved mode, and up to 4096 pixels in single-component mode
·Maximum tile/image height: 4096 pixels
·Video interface directly supporting ITU.R-BT656, SMPTE125M PAL/ NTSC, SMPTE274M, SMPTE293M (525p), ITU.R-·BT1358 (625p) or any video format with a maximum input rate of 65 MSPS for irreversible mode or 40 MSPS for reversible mode
·Two or more ADV202s can be combined to support full-frame SMPTE274M HDTV (1080i) or SMPTE296M (720p)
·Interlaces temporally coherent frame-based SD video sources for improved performance
·Flexible asynchronous SRAM-style host interface allows glueless connection to most 16-/32-bit microcontrollers and ·ASICs
·2.5 V to 3.3 V I/O and 1.5 V core supply
·12 mm × 12 mm 121-lead CSPBGA, speed grade 115 MHz, or 13 mm × 13 mm 144-lead CSPBGA, speed grade 150 MHz
·Patented SURF™ (spatial ultraefficient recursive filtering) technology enables low power and low cost wavelet based compression
·Supports both 9/7 and 5/3 wavelet transforms with up to 6 levels of transform
·Programmable tile/image size with widths up to 2048 pixels in 3-component 4:2:2 interleaved mode, and up to 4096 pixels in single-component mode
·Maximum tile/image height: 4096 pixels
·Video interface directly supporting ITU.R-BT656, SMPTE125M PAL/ NTSC, SMPTE274M, SMPTE293M (525p), ITU.R-·BT1358 (625p) or any video format with a maximum input rate of 65 MSPS for irreversible mode or 40 MSPS for reversible mode
·Two or more ADV202s can be combined to support full-frame SMPTE274M HDTV (1080i) or SMPTE296M (720p)
·Interlaces temporally coherent frame-based SD video sources for improved performance
·Flexible asynchronous SRAM-style host interface allows glueless connection to most 16-/32-bit microcontrollers and ·ASICs
·2.5 V to 3.3 V I/O and 1.5 V core supply
·12 mm × 12 mm 121-lead CSPBGA, speed grade 115 MHz, or 13 mm × 13 mm 144-lead CSPBGA, speed grade 150 MHz
ADV202 Typical Application
·Networked video and image distribution systems
·Wireless video and image distribution
·Image archival/retrieval
·Digital CCTV and surveillance systems
·Digital cinema systems
·Professional video editing and recording
·Digital still cameras
·Digital camcorders
·Wireless video and image distribution
·Image archival/retrieval
·Digital CCTV and surveillance systems
·Digital cinema systems
·Professional video editing and recording
·Digital still cameras
·Digital camcorders
