Part Number: ADV7123
MFG: ADI
D/C: 09
Description: The ADV7123 (ADV®) is a triple high speed, digital-to-analog converter on a single monolithic chip...
- Table of contents:
ADV7123
-
Suppliers
DataSheet
General Description
ADV7123 General Description
The ADV7123 (ADV®) is a triple high speed, digital-to-analog converter on a single monolithic chip. It consists of three
high speed, 10-bit, video D/A converters with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source.
The ADV7123 has three separate 10-bit-wide input ports. A single 5 V/3.3 V power supply and clock are all that are required to make the part functional. The ADV7123 has additional video control signals, composite SYNC and BLANK.
The ADV7123 also has a Power-Save Mode.
The ADV7123 is fabricated in a 5 V CMOS process. Its monolithic CMOS construction ensures greater functionality with lower power dissipation. The ADV7123 is available in a 48-lead LQFP package.
ADV7123 Maximum Ratings
VAA to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Voltage on any Digital Pin . . . . . GND 0.5 V to VAA + 0.5 V
Ambient Operating Temperature (TA) . . . . . 40°C to +85°C
Storage Temperature (TS) . . . . . . . . . . . . . .65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . 150°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . . 300°C
Vapor Phase Soldering (1 Minute) . . . . . . . . . . . . . . . . 220°C
IOUT to GND2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to VAA
Voltage on any Digital Pin . . . . . GND 0.5 V to VAA + 0.5 V
Ambient Operating Temperature (TA) . . . . . 40°C to +85°C
Storage Temperature (TS) . . . . . . . . . . . . . .65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . 150°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . . 300°C
Vapor Phase Soldering (1 Minute) . . . . . . . . . . . . . . . . 220°C
IOUT to GND2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to VAA
ADV7123 Features
`330 MSPS Throughput Rate
`Triple 10-Bit D/A Converters
`SFDR
70 dB at fCLK = 50 MHz; fOUT = 1 MHz
53 dB at fCLK = 140 MHz; fOUT = 40 MHz
`RS-343A/RS-170 Compatible Output
`Complementary Outputs
`DAC Output Current Range 2 mA to 26 mA
`TTL Compatible Inputs
`Internal Reference (1.23 V)
`Single-Supply 5 V/3.3 V Operation
`48-Lead LQFP Package
`Low Power Dissipation (30 mW Min @ 3 V)
`Low Power Standby Mode (6 mW Typ @ 3 V)
`Industrial Temperature Range (40C to +85C)
`Triple 10-Bit D/A Converters
`SFDR
70 dB at fCLK = 50 MHz; fOUT = 1 MHz
53 dB at fCLK = 140 MHz; fOUT = 40 MHz
`RS-343A/RS-170 Compatible Output
`Complementary Outputs
`DAC Output Current Range 2 mA to 26 mA
`TTL Compatible Inputs
`Internal Reference (1.23 V)
`Single-Supply 5 V/3.3 V Operation
`48-Lead LQFP Package
`Low Power Dissipation (30 mW Min @ 3 V)
`Low Power Standby Mode (6 mW Typ @ 3 V)
`Industrial Temperature Range (40C to +85C)
ADV7123 Typical Application
·Digital Video Systems (1600 1200 @ 100 Hz)
·High Resolution Color Graphics
·Digital Radio Modulation
·Image Processing
·Instrumentation
·Video Signal Reconstruction
·High Resolution Color Graphics
·Digital Radio Modulation
·Image Processing
·Instrumentation
·Video Signal Reconstruction

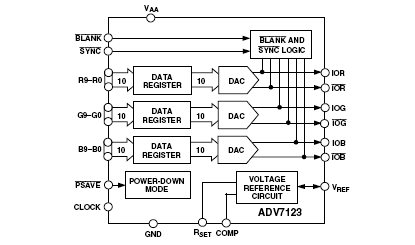

ADV7123 Connection Diagram
ADV7123
PDF/DataSheet Download
- Datasheet: ADV7123
- File Size: 373508 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
