Purchase ADV7128, In-stock ADV7128 From SeekIC.
MFG:ADI D/C:09
Part Number: ADV7128
MFG: ADI
D/C: 09
Description: The ADV7128 (ADVÒ) is a video speed, digital-to-analog converter on a single monolithic chip. I...
- Table of contents:
ADV7128
-
Suppliers
DataSheet
General Description
ADV7128 General Description

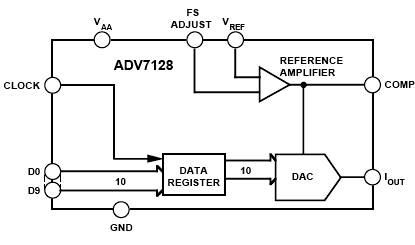

The ADV7128 (ADVÒ) is a video speed, digital-to-analog converter on a single monolithic chip. It consists of a high speed, 10-bit, video D/A converters; a standard TTL input interface; and a high impedance, analog output, current source.
The ADV7128 has a 10-bit pixel input port. A single +5 V power supply, an external 1.23 V reference and pixel clock input are and all that are required to make the part operational.
The ADV7128 is capable of generating video output signals which are compatible with RS-343A, RS-170 and most proposed production system HDTV video standards, including SMPTE 240M.
The ADV7128 is fabricated in a +5 V CMOS process. Its monolithic CMOS construction ensures greater functionality with low power dissipation. The ADV7128 is available in a 28- lead small outline IC (SOIC).
ADV7128 Maximum Ratings
VAA to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +7 V
Voltage on Any Digital Pin . . . . . . . . GND 0.5 V to VAA +0.5 V
Ambient Operating Temperature (TA) . . . . . . . . .0°C to +70°C
Storage Temperature (TS) . . . . . . . . . . . . . . 65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . .+150°C
Soldering Temperature (10 secs) . . . . . . . . . . . . . . . . . . 300°C
Vapor Phase Soldering (1 minute) . . . . . . . . . . . . . . . . . 220°C
IOR, IOB, IOG, ISYNC to GND2 . . . . . . . . . . . . . . . . . 0 V to VAA
Voltage on Any Digital Pin . . . . . . . . GND 0.5 V to VAA +0.5 V
Ambient Operating Temperature (TA) . . . . . . . . .0°C to +70°C
Storage Temperature (TS) . . . . . . . . . . . . . . 65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . .+150°C
Soldering Temperature (10 secs) . . . . . . . . . . . . . . . . . . 300°C
Vapor Phase Soldering (1 minute) . . . . . . . . . . . . . . . . . 220°C
IOR, IOB, IOG, ISYNC to GND2 . . . . . . . . . . . . . . . . . 0 V to VAA
ADV7128 Features
·80 MHz Pipelined Operation
·10-Bit D/A Converters
·RS-343A/RS-170 Compatible Outputs
·TTL Compatible Inputs
·+5 V CMOS Monolithic Construction
·28-Pin SOIC Package
·10-Bit D/A Converters
·RS-343A/RS-170 Compatible Outputs
·TTL Compatible Inputs
·+5 V CMOS Monolithic Construction
·28-Pin SOIC Package
ADV7128 Typical Application
·High Definition Television (HDTV)
·High Resolution Color Graphics
·Digital Radio Modulation
·CAE/CAD/CAM Applications
·Image Processing
·Instrumentation
·Video Signal Reconstruction
·Direct Digital Synthesis (DDS) & I/O Modulation
·Wireless LAN
·Wireless Local Loop
·High Resolution Color Graphics
·Digital Radio Modulation
·CAE/CAD/CAM Applications
·Image Processing
·Instrumentation
·Video Signal Reconstruction
·Direct Digital Synthesis (DDS) & I/O Modulation
·Wireless LAN
·Wireless Local Loop

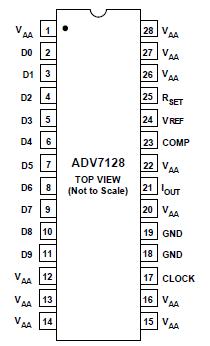

ADV7128 Connection Diagram
ADV7128
