Purchase ADV7129, In-stock ADV7129 From SeekIC.
Package Cooled:.
Part Number: ADV7129
Package Cooled: .
Description: The ADV7129 is a complete analog output, video DAC on a single CMOS (ADV®) monolithic chip. The pa...
- Table of contents:
ADV7129
-
Suppliers
DataSheet
General Description
ADV7129 General Description
The ADV7129 is a complete analog output, video DAC on a single CMOS (ADV®) monolithic chip. The part is specifically designed for use in the highest resolution graphics and imaging systems.
The ultimate level of integration, comprised of 360 MHz triple 8-bit DACs, a programmable pixel port, an internal voltage reference and an onboard PLL, makes the ADV7129 the only choice for the very highest level of performance and functionality.
The device consists of three high speed, 8-bit, video D/A converters (RGB). An onboard phase locked loop clock generator is provided to provide high speed operation without requiring high speed external crystal or clock circuitry.
The part is fully controlled through the MPU port by the onboard command registers. This MPU port may be updated at any time without causing sparkle effects on the screen.
ADV7129 Maximum Ratings
VAA to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Voltage on Any Digital Pin . . . . . . GND 0.5 V to VAA + 0.5 V
Ambient Operating Temperature (TA) . . . . . 55°C to +125°C
Storage Temperature (TS) . . . . . . . . . . . . . .65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . +150°C
Lead Temperature (Soldering, 10 secs) . . . . . . . . . . . +260°C
Vapor Phase Soldering (1 minute) . . . . . . . . . . . . . . . +220°C
Analog Outputs to GND2 . . . . . . . . . . . . .. . GND 0.5 to VAA
Current on Any DAC Output . . . . . . . . . . . . . . . . . . . . . 60 mA
Voltage on Any Digital Pin . . . . . . GND 0.5 V to VAA + 0.5 V
Ambient Operating Temperature (TA) . . . . . 55°C to +125°C
Storage Temperature (TS) . . . . . . . . . . . . . .65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . +150°C
Lead Temperature (Soldering, 10 secs) . . . . . . . . . . . +260°C
Vapor Phase Soldering (1 minute) . . . . . . . . . . . . . . . +220°C
Analog Outputs to GND2 . . . . . . . . . . . . .. . GND 0.5 to VAA
Current on Any DAC Output . . . . . . . . . . . . . . . . . . . . . 60 mA
ADV7129 Features
·192-Bit Pixel Port Allows 2048 3 2048 3 24 Screen
·Resolution
·360 MHz, 24-Bit True-Color Operation
·Triple 8-Bit D/A Converters
·8:1 Multiplexing
·Onboard PLL
·RS-343A/RS-170 Compatible Analog Outputs
·TTL Compatible Digital Inputs
·Internal Voltage Reference
·Standard 8-Bit MPU I/O Interface
·DAC-DAC Matching: Typ 2%, Adjustable to 0.02%
·+5 V CMOS Monolithic Construction
·304-Pin PQFP Package
·Resolution
·360 MHz, 24-Bit True-Color Operation
·Triple 8-Bit D/A Converters
·8:1 Multiplexing
·Onboard PLL
·RS-343A/RS-170 Compatible Analog Outputs
·TTL Compatible Digital Inputs
·Internal Voltage Reference
·Standard 8-Bit MPU I/O Interface
·DAC-DAC Matching: Typ 2%, Adjustable to 0.02%
·+5 V CMOS Monolithic Construction
·304-Pin PQFP Package
ADV7129 Typical Application
·Ultrahigh Resolution Color Graphics
·Image Processing
·Drives 24-Bit Color 2K 3 2K Monitors
·Image Processing
·Drives 24-Bit Color 2K 3 2K Monitors

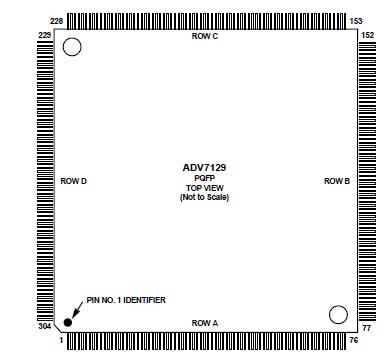

ADV7129 Connection Diagram
ADV7129
