Part Number: ADV7160
Description: The ADV7160/ADV7162® is a 96-bit pixel port Video RAMDAC with color enhanced triple 10-bit DACs. T...
- Table of contents:
ADV7160
-
Suppliers
DataSheet
General Description
ADV7160 General Description
The ADV7160/ADV7162® is a 96-bit pixel port Video RAMDAC with color enhanced triple 10-bit DACs. The device also includes a PLL and 64 ´ 64 hardware cursor. The ADV7160/ ADV7162 is specifically designed for use in the graphics subsystem of high performance, color graphics workstations and windows accelerators.
ADV7160 Maximum Ratings
VAA to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Voltage on Any Digital Pin . . . . . . GND 0.5 V to VAA + 0.5 V
Ambient Operating Temperature (TA) . . . . . 55°C to +125°C
Storage Temperature (TS) . . . . . . . . . . . . . .65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . +150°C
Lead Temperature (Soldering, 10 secs) . . . . . . . . . . . +260°C
Vapor Phase Soldering (1 minute) . . . . . . . . . . . . . . . +220°C
Analog Outputs to GND2 . . . . . . . . . . . . .. . GND 0.5 to VAA
Voltage on Any Digital Pin . . . . . . GND 0.5 V to VAA + 0.5 V
Ambient Operating Temperature (TA) . . . . . 55°C to +125°C
Storage Temperature (TS) . . . . . . . . . . . . . .65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . +150°C
Lead Temperature (Soldering, 10 secs) . . . . . . . . . . . +260°C
Vapor Phase Soldering (1 minute) . . . . . . . . . . . . . . . +220°C
Analog Outputs to GND2 . . . . . . . . . . . . .. . GND 0.5 to VAA
ADV7160 Features
`96-Bit Pixel Port for 1600 ´ 1280 ´ 24 Screen Resolution
`220 MHz, 24-Bit (30-Bit Gamma Corrected) True-Color
`Triple 10-Bit "Gamma Correcting" D/A Converters
`2% (max) DAC to DAC Color Matching
`Triple 256 ´ 10 (256 x 30) Color Palette RAM
`On-Board User Definable Cursor (64 ´ 64 ´ 2)
`Three Color Overlay
`Cursor Palette RAM
`Fully Programmable On-Board PLL
`RS-343A/RS-170 Compatible RGB Analog Outputs
`Tri-Level SYNC Functionality
`TTL Compatible Digital Inputs
`Standard MPU I/O Interface
`Programmable Pixel Port: 24-Bit, 16-Bit, 15-Bit &
`8-Bit (Pseudo)
`Pixel Data Serializer:
`Multiplexed Pixel Input Ports; 2:1, 4:1, 8:1
`+5 V CMOS Monolithic Construction
`160-Lead Plastic Quad Flatpack (QFP): ADV7162
`160-Lead "Thermally Enhanced" QFP (PQUAD): ADV7160
`220 MHz, 24-Bit (30-Bit Gamma Corrected) True-Color
`Triple 10-Bit "Gamma Correcting" D/A Converters
`2% (max) DAC to DAC Color Matching
`Triple 256 ´ 10 (256 x 30) Color Palette RAM
`On-Board User Definable Cursor (64 ´ 64 ´ 2)
`Three Color Overlay
`Cursor Palette RAM
`Fully Programmable On-Board PLL
`RS-343A/RS-170 Compatible RGB Analog Outputs
`Tri-Level SYNC Functionality
`TTL Compatible Digital Inputs
`Standard MPU I/O Interface
`Programmable Pixel Port: 24-Bit, 16-Bit, 15-Bit &
`8-Bit (Pseudo)
`Pixel Data Serializer:
`Multiplexed Pixel Input Ports; 2:1, 4:1, 8:1
`+5 V CMOS Monolithic Construction
`160-Lead Plastic Quad Flatpack (QFP): ADV7162
`160-Lead "Thermally Enhanced" QFP (PQUAD): ADV7160
ADV7160 Typical Application
·Windows Accelerators
·High Resolution, True Color Graphics
·Professional Color Prepress Imaging
·Digital TV (HDTV, Digital Video)
·High Resolution, True Color Graphics
·Professional Color Prepress Imaging
·Digital TV (HDTV, Digital Video)

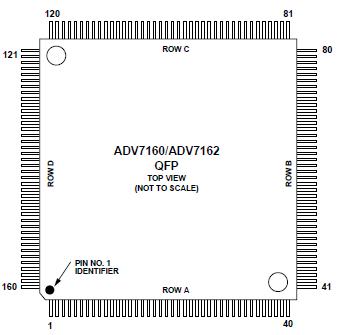

ADV7160 Connection Diagram
ADV7160
