Purchase ADV7184, In-stock ADV7184 From SeekIC.
MFG:ADI D/C:09
Part Number: ADV7184
MFG: ADI
D/C: 09
Description: The ADV7184 integrated video decoder automatically detects and converts standard analog baseband telev...
- Table of contents:
ADV7184
-
Suppliers
DataSheet
General Description
ADV7184 General Description
The ADV7184 integrated video decoder automatically detects and converts standard analog baseband television signals compatible with worldwide NTSC, PAL, and SECAM standards into 4:2:2 component video data compatible with 16- or 8-bit CCIR 601/CCIR 656.
The advanced, highly flexible digital output interface enables performance video decoding and conversion in line-locked, clock-based systems. This makes the device ideally suited for a broad range of applications with diverse analog video character-istics, including tape-based sources, broadcast sources, security and surveillance cameras, and professional systems.
The accurate 10-bit ADC provides professional quality video performance and is unmatched. This allows true 8-bit resolution in the 8-bit output mode.
The 12 analog input channels accept standard composite, S-video, and component video signals in an extensive number of combinations.
ADV7184 Maximum Ratings
AVDD to AGND...........................4 V
DVDD to DGND......................... 2.2 V
PVDD to AGND......................... 2.2 V
DVDDIO to DGND......................... 4V
DVDDIO to AVDD.................−0.3 V to +0.3 V
PVDD to DVDD.................. 0.3 V to +0.3 V
DVDDIO to PVDD.................. −0.3 V to +2 V
DVDDIO to DVDD.................. −0.3 V to +2 V
AVDD to PVDD....................−0.3 V to +2 V
AVDD to DVDD................... −0.3 V to +2 V
Digital Inputs Voltage to DGND.. −0.3 V to DVDDIO + 0.3 V
Digital Output Voltage to DGND..−0.3 V to DVDDIO + 0.3 V
Analog Inputs to AGND.... AGND − 0.3 V to AVDD + 0.3 V
Maximum Junction Temperature (TJ max)........125°C
Storage Temperature Range ........−65°C to +150°C
Infrared Reflow Soldering (20 sec)............260°C
DVDD to DGND......................... 2.2 V
PVDD to AGND......................... 2.2 V
DVDDIO to DGND......................... 4V
DVDDIO to AVDD.................−0.3 V to +0.3 V
PVDD to DVDD.................. 0.3 V to +0.3 V
DVDDIO to PVDD.................. −0.3 V to +2 V
DVDDIO to DVDD.................. −0.3 V to +2 V
AVDD to PVDD....................−0.3 V to +2 V
AVDD to DVDD................... −0.3 V to +2 V
Digital Inputs Voltage to DGND.. −0.3 V to DVDDIO + 0.3 V
Digital Output Voltage to DGND..−0.3 V to DVDDIO + 0.3 V
Analog Inputs to AGND.... AGND − 0.3 V to AVDD + 0.3 V
Maximum Junction Temperature (TJ max)........125°C
Storage Temperature Range ........−65°C to +150°C
Infrared Reflow Soldering (20 sec)............260°C
ADV7184 Features
·Multiformat video decoder supports NTSC (J/M/4.43), PAL (B/D/G/H/I/M/N), SECAM
·Integrates four 54 MHz, 10-bit ADCs
·SCART fast blank support
·Clocked from a single 28.63636 MHz crystal
·Line-locked clock-compatible (LLC)
·Adaptive Digital Line Length Tracking (ADLLT™), signal processing, and enhanced FIFO management give mini-TBC functionality
5-line adaptive comb filters
·Proprietary architecture for locking to weak, noisy, and unstable video sources such as VCRs and tuners
·Subcarrier frequency lock and status information output
·Integrated automatic gain control (AGC) with adaptive peak white mode
·Macrovision® copy protection detection
·Chroma transient improvement (CTI)
·Digital noise reduction (DNR)
·Multiple programmable analog input formats CVBS (composite video) Y/C (S-video) YPrPb (component) (VESA, MII, SMPTE, and BETACAM)
·12 analog video input channels
·Integrated antialiasing filters
·Programmable interrupt request output pin
·Automatic NTSC/PAL/SECAM identification
·Integrates four 54 MHz, 10-bit ADCs
·SCART fast blank support
·Clocked from a single 28.63636 MHz crystal
·Line-locked clock-compatible (LLC)
·Adaptive Digital Line Length Tracking (ADLLT™), signal processing, and enhanced FIFO management give mini-TBC functionality
5-line adaptive comb filters
·Proprietary architecture for locking to weak, noisy, and unstable video sources such as VCRs and tuners
·Subcarrier frequency lock and status information output
·Integrated automatic gain control (AGC) with adaptive peak white mode
·Macrovision® copy protection detection
·Chroma transient improvement (CTI)
·Digital noise reduction (DNR)
·Multiple programmable analog input formats CVBS (composite video) Y/C (S-video) YPrPb (component) (VESA, MII, SMPTE, and BETACAM)
·12 analog video input channels
·Integrated antialiasing filters
·Programmable interrupt request output pin
·Automatic NTSC/PAL/SECAM identification
ADV7184 Typical Application
·High end DVD recorders
·Video projectors
·HDD-based PVRs/DVDRs
·LCD TVs
·Set-top boxes
·Security systems
·Digital televisions
·AVR receivers
·Video projectors
·HDD-based PVRs/DVDRs
·LCD TVs
·Set-top boxes
·Security systems
·Digital televisions
·AVR receivers
ADV7184 Connection Diagram
ADV7184
PDF/DataSheet Download
- Datasheet: ADV7184
- File Size: 1303900 KB
- Manufacturer: AD
- Click here to Download
- ·ADV101
- AD [Analog Devices]
- CMOS 80 MHz, Triple 8-Bit Video DAC
- 191521 KB
- ·ADV101KN30
- AD [Analog Devices]
- CMOS 80 MHz, Triple 8-Bit Video DAC
- 191521 KB
- ·ADV101KN50
- AD [Analog Devices]
- CMOS 80 MHz, Triple 8-Bit Video DAC
- 191521 KB
- ·ADV101KN80
- AD [Analog Devices]
- CMOS 80 MHz, Triple 8-Bit Video DAC
- 191521 KB
- ·ADV101KP30
- AD [Analog Devices]
- CMOS 80 MHz, Triple 8-Bit Video DAC
- 191521 KB
- ·ADV101KP50
- AD [Analog Devices]
- CMOS 80 MHz, Triple 8-Bit Video DAC
- 191521 KB
- ·ADV101KP80
- AD [Analog Devices]
- CMOS 80 MHz, Triple 8-Bit Video DAC
- 191521 KB
- ·ADV202
- AD [Analog Devices]
- JPEG2000 Video Codec
- 861715 KB
ADV7184 Relative Products

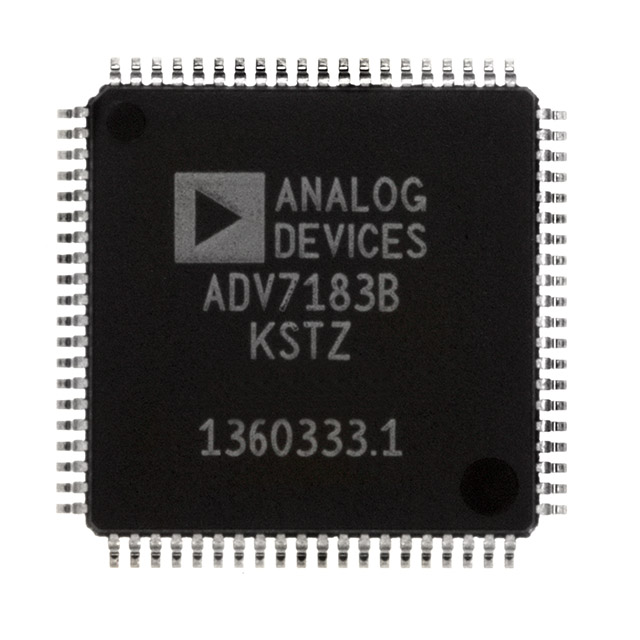

ADV7183BKSTZ
