Part Number: ADV7343

ADV7343 Maximum Ratings

Parameter1	Rating
V_AA to AGND	−0.3 V to +3.9 V
V_DD to DGND	−0.3 V to +2.3 V
PV_DD to PGND	−0.3 V to +2.3 V
V_DD_IO to GND_IO	−0.3 V to +3.9 V
V_AA to V_DD	−0.3 V to +2.2 V
V_DD to PV_DD	−0.3 V to +0.3 V
V_DD_IO to V_DD	−0.3 V to +2.2 V
AGND to DGND	−0.3 V to +0.3 V
AGND to PGND	−0.3 V to +0.3 V
AGND to GND_IO	−0.3 V to +0.3 V
DGND to PGND	−0.3 V to +0.3 V
DGND to GND_IO	−0.3 V to +0.3 V
PGND to GND_IO	−0.3 V to +0.3 V
Digital Input Voltage to GND_IO	−0.3 V to V_{DD_IO} + 0.3 V
Analog Outputs to AGND	−0.3 V to V_AA
Storage Temperature Range (T_S)	−65°C to +150°C
Junction Temperature (T_J)	150°C
Lead Temperature (Soldering, 10 sec)	260°C

Analog output short circuit to any power supply or common can be of an indefinite duration.

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

ADV7343 Features

·74.25 MHz 20-/30-bit high definition input support
   Compliant with SMPTE 274M (1080i), 296M (720p),
   and 240M (1035i)
·6, 11-bit, 297 MHz video DACs
     16× (216 MHz) DAC oversampling for SD
     8× (216 MHz) DAC oversampling for ED
     4× (297 MHz) DAC oversampling for HD
     37 mA maximum DAC output current
·NTSC M, PAL B/D/G/H/I/M/N, PAL 60 support
·NTSC and PAL square pixel operation (24.54 MHz/29.5 MHz)
·Multiformat video input support
     4:2:2 YCrCb (SD, ED, and HD)
     4:4:4 YCrCb (ED and HD)
     4:4:4 RGB (SD, ED, and HD)
·Multiformat video output support
     Composite (CVBS) and S-Video (Y/C)
     Component YPrPb (SD, ED, and HD)
     Component RGB (SD, ED, and HD)
·Macrovision® Rev 7.1.L1 (SD) and Rev 1.2 (ED) compliant
·Simultaneous SD and ED/HD operation
·EIA/CEA-861B compliance support
·Programmable features
     Luma and chroma filter responses
     Vertical blanking interval (VBI)
     Subcarrier frequency (F_SC) and phase
     Luma delay
·Copy generation management system (CGMS)
·Closed captioning and wide screen signaling (WSS)
·Integrated subcarrier locking to external video source
·Complete on-chip video timing generator
·On-chip test pattern generation
·On-board voltage reference (optional external input)
·Serial MPU interface with dual I₂C^® and SPI^® compatibility
·3.3 V analog operation
·1.8 V digital operation
·3.3 V I/O operation
·Temperature range: −40°C to +85°C

ADV7343 Typical Application

·DVD recorders and players
·High definition Blu-ray DVD players
·HD-DVD players

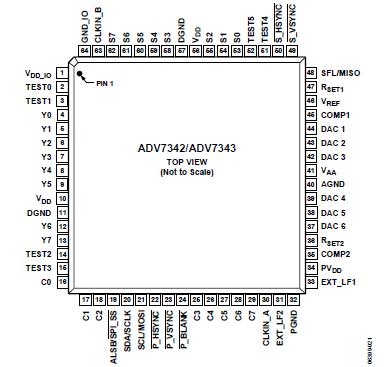

ADV7343 Connection Diagram
