Part Number: ADV7403



MFG: ADI



D/C: 09

Description: The ADV7403 is a high quality, single chip, multiformat video decoder and graphics digitizer. This multiformat decoder supports the conver...


Urgent Purchase

ADV7403 General Description


The ADV7403 is a high quality, single chip, multiformat video decoder and graphics digitizer. This multiformat decoder supports the conversion of PAL, NTSC, and SECAM standards in the form of

ADV7403 Maximum Ratings

Resolution (Bits) 12bit
ADC Speed (MHz) 140MHz
Output Resolution (bits) 10bit
Input Color Formats NTSC,PAL,SECAM
Input Signal Types Composite,RGB,RGB SCART,Y/C,YPbPr
Data Output Formats 10 & 20-bit YCbCr 4:2:2,12-bit RGB DDR,24-bit YCbCr/RGB 4:4:4,8 & 16-bit YCbCr 4:2:2
# Input Channels 12
Package 100-Lead LQFP
Power Dissipation (mW) 550mW

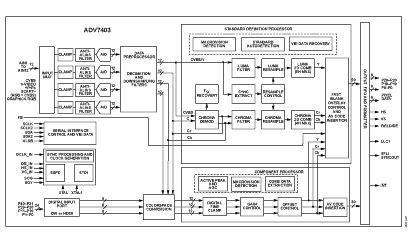

ADV7403 Connection Diagram

ADV7403 Connection Diagram
