Part Number: ADV7520



MFG: ADI



D/C: 09

Description: The ADV7520 is an 80 MHz, High Definition Multimedia Interface (HDMI?) transmitter with consumer electronic control (CEC). It supports HDT...


Urgent Purchase

ADV7520 General Description


The ADV7520 is an 80 MHz, High Definition Multimedia Interface (HDMI?) transmitter with consumer electronic control (CEC). It supports HDTV formats up to 720p and 1080i and computer graphic

ADV7520 Maximum Ratings

CEC Support X
Function HDMI/DVI Xmitter
HDCP Key Internal
I2S Audio Channels 8
Max Resolution 720p/1080i
Resolution (Bits) 8bit
Package 64-LFCSP,76-BGA
Sample Rate (MSPS) 0
SPDIF X

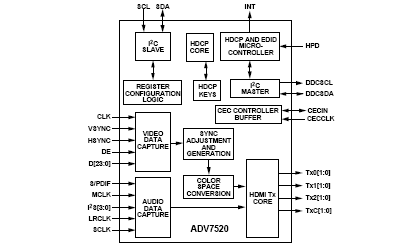

ADV7520 Connection Diagram

ADV7520 Connection Diagram

ADV7520 datasheet

ADV7520NK/PCBZ
PDF/DataSheet Download
