Five Points

Part Number: ADV7521NK



MFG: ADI



D/C: 09

Description: The ADV7521NK is an 80 MHz, high definition multimedia interface (HDMI™) v.1.3 transmitter. It supports HDTV formats up to 1080i and...


Urgent Purchase

ADV7521NK General Description


The ADV7521NK is an 80 MHz, high definition multimedia interface (HDMI™) v.1.3 transmitter. It supports HDTV formats up to 1080i and 720p, and computer graphic resolutions up to XGA (1024 × 768

ADV7521NK Maximum Ratings

CEC Support X
Function HDMI/DVI Xmitter
I2S Audio Channels 2
Max Resolution 720p/1080i
Resolution (Bits) 8bit
Package 49-WLCSP
Sample Rate (MSPS) 0
SPDIF X

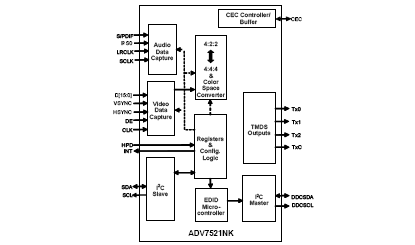

ADV7521NK Connection Diagram

ADV7521NK Connection Diagram
