Purchase ADXL103, In-stock ADXL103 From SeekIC.
MFG:ADI D/C:09
Part Number: ADXL103
MFG: ADI
D/C: 09
Description: The ADXL103/ADXL203 are high precision, low power, complete single and dual axis accelerometers with s...
- Table of contents:
ADXL103
-
Suppliers
DataSheet
General Description
ADXL103 General Description
The ADXL103/ADXL203 are high precision, low power, complete single and dual axis accelerometers with signal conditioned voltage outputs, all on a single monolithic IC. The ADXL103/ADXL203 measures acceleration with a full-scale range of ±1.7 g . The ADXL103/ADXL203 can measure both dynamic acceleration (e.g., vibration) and static acceleration (e.g., gravity).
The typical noise floor is 110 g/Hz, allowing signals below 1 mg (0.06° of inclination) to be resolved in tilt sensing applications using narrow bandwidths (<60 Hz).

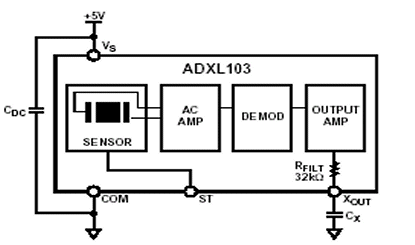

The user selects the bandwidth of the accelerometer using capacitors CX and CY at the XOUT and YOUT pins. Bandwidths of 0.5 Hz to 2.5 kHz may be selected to suit the application.
The ADXL103 and ADXL203 are available in 5 mm * 5 mm * 2 mm, 8-pad hermetic LCC packages.
ADXL103 Maximum Ratings
Acceleration (Any Axis, Unpowered).............3,500 g
Acceleration (Any Axis, Powered).............. 3,500 g
Drop Test (Concrete Surface)..................1.2 m
VS............................0.3 V to +7.0 V
All Other Pins............. (COM 0.3 V) to (VS + 0.3 V)
Output Short-Circuit Duration (Any Pin to Common)..Indefinite
Operating Temperature Range........ 55°C to +125°C
Storage Temperature............... 65°C to +150°C
Acceleration (Any Axis, Powered).............. 3,500 g
Drop Test (Concrete Surface)..................1.2 m
VS............................0.3 V to +7.0 V
All Other Pins............. (COM 0.3 V) to (VS + 0.3 V)
Output Short-Circuit Duration (Any Pin to Common)..Indefinite
Operating Temperature Range........ 55°C to +125°C
Storage Temperature............... 65°C to +150°C
ADXL103 Features
`High performance, single/dual axis accelerometer on a single IC chip
`5 mm * 5 mm * 2 mm LCC package
`1 mg resolution at 60 Hz
`Low power: 700 A at VS = 5 V (typical)
`High zero g bias stability
`High sensitivity accuracy
40°C to +125°C temperature range
`X and Y axes aligned to within 0.1° (typical)
`BW adjustment with a single capacitor
`Single-supply operation
`3500 g shock survival
`5 mm * 5 mm * 2 mm LCC package
`1 mg resolution at 60 Hz
`Low power: 700 A at VS = 5 V (typical)
`High zero g bias stability
`High sensitivity accuracy
40°C to +125°C temperature range
`X and Y axes aligned to within 0.1° (typical)
`BW adjustment with a single capacitor
`Single-supply operation
`3500 g shock survival
ADXL103 Typical Application
·Vehicle Dynamic Control (VDC)/Electronic Stability Program
·(ESP) systems
·Electronic chassis control
·Electronic braking
·Platform stabilization/leveling
·Navigation
·Alarms and motion detectors.
·High accuracy, 2-axis tilt sensing
·(ESP) systems
·Electronic chassis control
·Electronic braking
·Platform stabilization/leveling
·Navigation
·Alarms and motion detectors.
·High accuracy, 2-axis tilt sensing
ADXL103
PDF/DataSheet Download
- Datasheet: ADXL103
- File Size: 448771 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
