Part Number: ADXL311
Description: The ADXL311 is a low cost, low power, complete dual-axis accelerometer with signal conditioned voltage...
- Table of contents:
ADXL311
-
Suppliers
DataSheet
General Description
ADXL311 General Description
The ADXL311 is a low cost, low power, complete dual-axis accelerometer with signal conditioned voltage outputs, all on a single monolithic IC. The ADXL311 is built using the same proven iMEMS® process used in over 100 million Analog Devices accelerometers shipped to date, with demonstrated 1 FIT reliability (1 failure per 1 billion device operating hours).
The ADXL311 will measure acceleration with a full-scale range of ±2 g. The ADXL311 can measure both dynamic acceleration (e.g., vibration) and static acceleration (e.g., gravity). The outputs are analog voltages proportional to acceleration.
The typical noise floor is 300 g/Hz allowing signals below 2 mg (0.1° of inclination) to be resolved in tilt sensing appli-cations using narrow bandwidths (10 Hz).

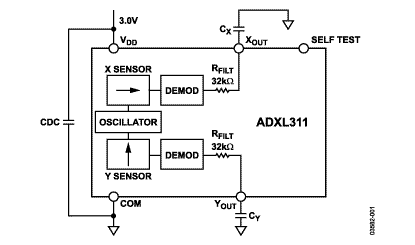

The user selects the bandwidth of the accelerometer using capacitors CX and CY at the XFILT and YFILT pins. Bandwidths of 1 Hz to 2 kHz may be selected to suit the application.
ADXL311 Maximum Ratings
Acceleration (Any Axis, Unpowered)............. 3,500 g, 0.5 ms
Acceleration (Any Axis, Powered, VDD = 3 V)........3,500 g, 0.5 ms
VDD................................ 0.3 V to +0.6 V
Output Short-Circuit Duration, (Any Pin to Commom)...... Indefinite
Operating Temperature Range.............. 55°C to +125°C
Storage Temperature.................... 65°C to +150°C
Acceleration (Any Axis, Powered, VDD = 3 V)........3,500 g, 0.5 ms
VDD................................ 0.3 V to +0.6 V
Output Short-Circuit Duration, (Any Pin to Commom)...... Indefinite
Operating Temperature Range.............. 55°C to +125°C
Storage Temperature.................... 65°C to +150°C
ADXL311 Features
`Low cost
`High resolution
`Dual-axis accelerometer on a single IC chip
`5 mm * 5 mm * 2 mm CLCC package
`Low power < 400 A (typ)
`X-axis and Y-axis aligned to within 0.1° (typ)
`BW adjustment with a single capacitor
`Single-supply operation
`High shock survival
`High resolution
`Dual-axis accelerometer on a single IC chip
`5 mm * 5 mm * 2 mm CLCC package
`Low power < 400 A (typ)
`X-axis and Y-axis aligned to within 0.1° (typ)
`BW adjustment with a single capacitor
`Single-supply operation
`High shock survival
ADXL311 Typical Application
·Tilt and motion sensing in cost-sensitive applications
·Smart handheld devices
·Computer security
·Input devices
·Pedometers and activity monitors
·Game controllers
·Toys and entertainment products
·Smart handheld devices
·Computer security
·Input devices
·Pedometers and activity monitors
·Game controllers
·Toys and entertainment products
ADXL311
PDF/DataSheet Download
- Datasheet: ADXL311
- File Size: 429123 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
