Part Number: ADXL322
Description: The ADXL322 is a small, thin, low power, complete, dual-axis accelerometer with signal conditioned vol...
- Table of contents:
ADXL322
-
Suppliers
DataSheet
General Description
ADXL322 General Description
The ADXL322 is a small, thin, low power, complete, dual-axis accelerometer with signal conditioned voltage outputs, which are all on a single monolithic IC. The product measures accel-eration with a full-scale range of ±2 g (typical). It can also measure both dynamic acceleration (vibration) and static acceleration (gravity).
The ADXL322's typical noise floor is 220 g/Hz, which allows signals below 2 mg to be resolved in tilt-sensing applications using narrow bandwidths (<60 Hz).

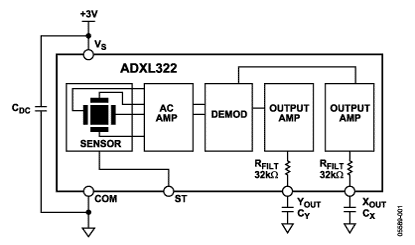

The user selects the bandwidth of the accelerometer using capacitors CX and CY at the XOUT and YOUT pins. Bandwidths of 0.5 Hz to 2.5 kHz can be selected to suit the application.
The ADXL322 is available in a 4 mm * 4 mm * 1.45 mm, 16-lead, plastic LFCSP.
ADXL322 Maximum Ratings
|
Parameter1 |
Rating |
| Acceleration (Any Axis, Unpowered) Acceleration (Any Axis, Powered) VS All Other Pins Output Short-Circuit Duration (Any Pin to Common) Operating Temperature Range Storage Temperature |
10,000 g 10,000 g −0.3 V to +7.0 V (COM − 0.3 V) to (VS + 0.3 V) Indefinite −55°C to +125°C −65°C to +150°C |
ADXL322 Features
`Small and thin 4 mm * 4 mm * 1.45 mm LFCSP package
`2 mg resolution at 60 Hz
`Wide supply voltage range: 2.4 V to 6 V
`Low power: 340 A at VS = 2.4 V (typ)
`Good zero g bias stability
`Good sensitivity accuracy
`X-axis and Y-axis aligned to within 0.1° (typ)
`BW adjustment with a single capacitor
`Single-supply operation
`10,000 g shock survival
`Pb Free: Compatible with Sn/Pb and Pb-free solder processes
`2 mg resolution at 60 Hz
`Wide supply voltage range: 2.4 V to 6 V
`Low power: 340 A at VS = 2.4 V (typ)
`Good zero g bias stability
`Good sensitivity accuracy
`X-axis and Y-axis aligned to within 0.1° (typ)
`BW adjustment with a single capacitor
`Single-supply operation
`10,000 g shock survival
`Pb Free: Compatible with Sn/Pb and Pb-free solder processes
ADXL322 Typical Application
Cost-sensitive motion- and tilt-sensing applications Smart hand-held devices Mobile phones Sports and health-related devices PC security and PC peripherals
