Purchase ADXL78, In-stock ADXL78 From SeekIC.
MFG:ADI D/C:09
Part Number: ADXL78
MFG: ADI
D/C: 09
Description: The ADXL78 is a low power, complete single-axis accelerometer with signal conditioned voltage outputs ...
- Table of contents:
ADXL78
-
Suppliers
DataSheet
General Description

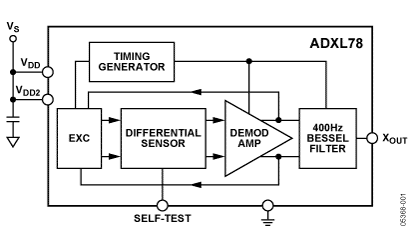

ADXL78 General Description
The ADXL78 is a low power, complete single-axis accelerometer with signal conditioned voltage outputs that are on a single monolithic IC. This product measures acceleration with a full-scale range of ±35 g, ±50 g, or ±70 g (minimum). It can also measure both dynamic acceleration (vibration) and static acceleration (gravity).
The ADXL78 is the fourth-generation surface micromachined iMEMS® accelerometer from ADI with enhanced performance and lower cost. Designed for use in front and side impact airbag applications, this product also provides a complete cost-effective solution useful for a wide variety of other applications.
The ADXL78 is temperature stable and accurate over the automotive temperature range, with a self-test feature that fully exercises all the mechanical and electrical elements of the sensor with a digital signal applied to a single pin.
The ADXL78 is available in a 5 mm × 5 mm × 2 mm, 8-terminal ceramic LCC package.
ADXL78 Maximum Ratings
|
Parameter1 |
Rating |
| Acceleration (Any Axis, Unpowered) Acceleration (Any Axis, Powered) VS All Other Pins Output Short-Circuit Duration (Any Pin to Common) Operating Temperature Range Storage Temperature |
4000 g 4000 g −0.3 V to +7.0 V (COM − 0.3 V) to (VS + 0.3 V) Indefinite −65°C to +150°C −65°C to +150°C |
ADXL78 Features
·Complete acceleration measurement system on a single monolithic IC
·Available in ±35 g, ±50 g, or ±70 g output full-scale ranges
·Full differential sensor and circuitry for high resistance to EMI/RFI
·Environmentally robust packaging
·Complete mechanical and electrical self-test on digital command
·Output ratiometric to supply
·Sensitive axes in the plane of the chip
·High linearity (0.2% of full scale)
·Frequency response down to dc
·Low noise
·Low power consumption (1.3 mA)
·Tight sensitivity tolerance and 0 g offset capability
·Largest available prefilter clipping headroom
·400 Hz, 2-pole Bessel filter
·Single-supply operation
·Compatible with Sn/Pb and Pb-free solder processes
·Available in ±35 g, ±50 g, or ±70 g output full-scale ranges
·Full differential sensor and circuitry for high resistance to EMI/RFI
·Environmentally robust packaging
·Complete mechanical and electrical self-test on digital command
·Output ratiometric to supply
·Sensitive axes in the plane of the chip
·High linearity (0.2% of full scale)
·Frequency response down to dc
·Low noise
·Low power consumption (1.3 mA)
·Tight sensitivity tolerance and 0 g offset capability
·Largest available prefilter clipping headroom
·400 Hz, 2-pole Bessel filter
·Single-supply operation
·Compatible with Sn/Pb and Pb-free solder processes
ADXL78 Typical Application
·Vibration monitoring and control
·Vehicle collision sensing
·Shock detection
·Vehicle collision sensing
·Shock detection
