Features: `Narrow body SOIC 8-lead package`Low power operation`5 V operation`1.1 mA per channel maximum @ 0 Mbps to 2 Mbps`3.7 mA per channel maximum @ 10 Mbps`8.2 mA per channel maximum @ 25 Mbps`3 V operation`0.8 mA per channel maximum @ 0 Mbps to 2 Mbps`2.2 mA per channel maximum @ 10 Mbps`4.8 ...
ADuM1200: Features: `Narrow body SOIC 8-lead package`Low power operation`5 V operation`1.1 mA per channel maximum @ 0 Mbps to 2 Mbps`3.7 mA per channel maximum @ 10 Mbps`8.2 mA per channel maximum @ 25 Mbps`3...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter | Symbol | Min | Max | Unit |
Storage Temperature | TST | −55 | 150 | °C |
Ambient Operating Temperature | TA | −40 | 105 | °C |
Supply Voltages1 | VDD1, VDD2 | −0.5 | 7.0 | V |
Input Voltage,1, 2 | VIA, VIB | −0.5 | VDDI + 0.5 | V |
Output Voltage1, 2 | VOA, VOB | −0.5 | VDDO + 0.5 | V |
Average Output Current, per Pin3 | IO | −35 | 35 | mA |
Common-Mode Transients4 | −100 | +100 | mA |
Max Operating Temp (°C) | 105Deg |
Insulation Rating (kVrms) | 2.5kV rms |
# Ch | 2 |
Isolation Voltage (Vrms) | 2500V rms |
Pulse Width Distort (ns) | 3ns |
Max Prop Delay (ns) | 45ns |
Isolated Output (V)min | 2.7V |
Isolated Output (V)max | 5.5V |
Output Default State | High |

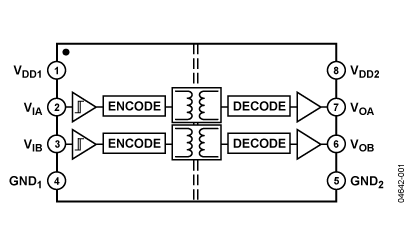

The ADuM120x are dual-channel digital isolators based on Analog Devices' iCoupler® technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices.
By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with these iCoupler products. Furthermore, iCoupler ADuM120x devices consume one-tenth to one-sixth the power of optocouplers at comparable signal data rates.
The ADuM120x isolators provide two independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). Both parts operate with the supply voltage on either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. In addition, the ADuM120x provide low pulse-width distortion (< 3 ns for CR grade) and tight channel-to-channel matching (< 3 ns for CR grade). Unlike other optocoupler alternatives, the ADuM120x isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and during power-up/power-down conditions.
