Features: `Isolated high-side and low-side outputsHigh-side or low-side relative to input: ±700 VPEAKHigh-side/low-side differential: 700 VPEAK`0.1 A peak output current`High frequency operation: 5 MHz max`High common-mode transient immunity: >50 kV/s`High temperature operation: 105°C`Wide body...
ADuM1230: Features: `Isolated high-side and low-side outputsHigh-side or low-side relative to input: ±700 VPEAKHigh-side/low-side differential: 700 VPEAK`0.1 A peak output current`High frequency operation: 5 ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Max Operating Temp (°C) | 105Deg |
Insulation Rating (kVrms) | 2.5kV rms |
# Ch | 2 |
Pulse Width Distort (ns) | 8ns |
Max Prop Delay (ns) | 160ns |
Isolated Output (V)min | 12V |
Isolated Output (V)max | 18V |
Output Default State | Low |

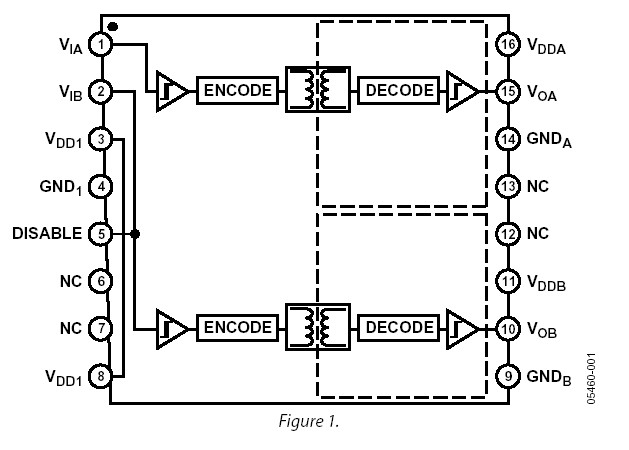

The ADuM12301 is an isolated half-bridge gate driver that employs Analog Devices' iCoupler® technology to provide independent and isolated high-side and low-side outputs. Combining high speed CMOS and monolithic transformer technology, this isolation component provides outstanding performance characteristics superior to optocoupler-based solutions.
By avoiding the use of LEDs and photodiodes, this iCoupler gate drive device is able to provide precision timing characteristics not possible with optocouplers. Furthermore, the reliability and performance stability problems of ADuM1230 associated with optocoupler LEDs are avoided.
In comparison to gate drivers employing high voltage level translation methodologies, the ADuM1230 offers the benefit of true, galvanic isolation between the input and each output. Each output may be operated up to ±700 VP relative to the input, thereby supporting low-side switching to negative voltages. The differential voltage between the high-side and low-side can be as high as 700 VP.
As a result, the ADuM1230 provides reliable control over the switching characteristics of IGBT/MOSFET configurations over a wide range of positive or negative switching voltages.
