MFG:N/A Package Cooled:N/A D/C:09+
MFG: N/A
Package Cooled: N/A
D/C: 09+
Description: The AG203-86 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surfac...
The AG203-86 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 900 MHz, the AG203-86 typically provides 19.5 dB of gain, +21 dBm Output IP3, and +8 dBm P1dB. The device combines dependable performance with consistent quality to maintain MTTF values exceeding 100 years at mounting temperatures of +85° C and is housed in a SOT-86 (micro-X) industry-standard SMT package.
The AG203-86 consists of Darlington pair amplifiers using the high reliability InGaP/GaAs HBT technology process technology and only requires DC-blocking capacitors, a bias resistor, and an inductive RF choke for operation.
The broadband MMIC amplifier can be directly applied to various current and next generation wireless technologies such as GPRS, GSM, CDMA, and W-CDMA. In addition, the AG203-86 will work for other various applications within the DC to 6 GHz frequency range such as CATV and fixed wireless.
| Parameter |
Rating |
| Operating Case Temperature Storage Temperature DC Voltage RF Input Power (continuous) Junction Temperature |
-40 to +85 °C -55 to +125 °C +4.5 V +10 dBm +250° C |
AG203-86
PDF/DataSheet Download
The AG203-63 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 900 MHz, the AG203-63 typically provides 20 dB of gain, +20 dBm Output IP3, and +8 dBm P1dB. The device combines dependable performance ...
The AG201-63 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 900 MHz, the AG201-63 typically provides 11 dB of gain, +19 dBm Output IP3, and +6.5 dBm P1dB. The device combines dependable performanc...
The AG103 is a general-purpose gain block that offers good dynamic range and low noise figure in a low-cost surfacemount package. The combination of high OIP3 and tight gain variation window makes AG103 attractive for a multitude of applications. The device ...
The AG101 is a general purpose gain block that offers good dynamic range in a low cost surface mount package. The combination of flat OIP3 and noise figure performance over frequency makes AG101 attractive for for both narrow band and broadband applications....

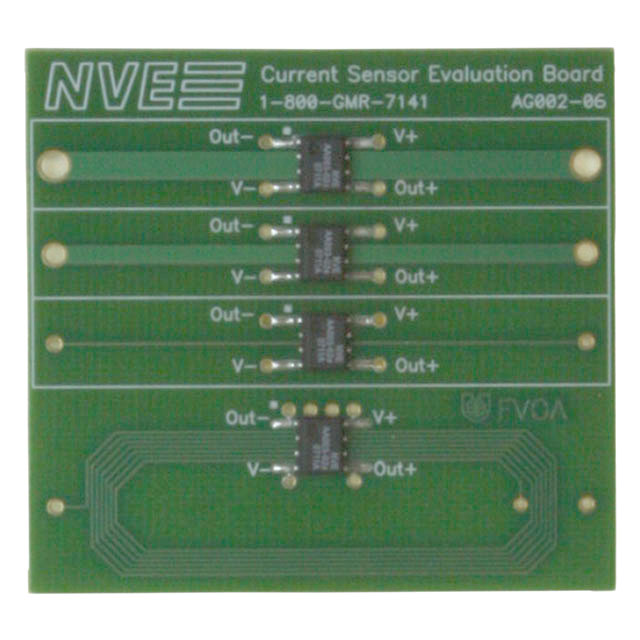

ASSEMBLY CURRENT SENSOR EVAL
