Purchase AH103A, In-stock AH103A From SeekIC.
MFG:WJ Package Cooled:SOT-89
Part Number: AH103A
MFG: WJ
Package Cooled: SOT-89
Description: The AH103A is a high gain, high linearity ½-Watt amplifier. This device is comprised of two ind...
- Table of contents:
AH103A
-
Suppliers
DataSheet
General Description
AH103A General Description
The AH103A is a high gain, high linearity ½-Watt amplifier. This device is comprised of two individual MMIC amplifiers internally and can be used with an external interstage match for any of the mobile infrastructure frequency bands. The dual-stage amplifier achieves up to +46 dBm IP3 performance with 29 dB gain.
The device conforms to WJ Communications' long history of producing high reliability and quality components. The AH103A has an associated MTTF of a minimum of 100 years at a mounting temperature of 85 °C and is housed in a lead-free /green/RoHS-compliant SOIC-8 package. All devices are 100% RF & DC tested.
The product is targeted for use as driver amplifiers for wireless infrastructure where high performance and high linearity are required.
AH103A Maximum Ratings
Operating Case Temperature................. -40 to +85 °C
Storage Temperature............................-55 to +125 °C
DC Voltage (pin 2) ................................................+6 V
DC Voltage (pin 6, 7).......................................... +11 V
RF Input Power (continuous)... 4 dB above Input P1dB
Junction Temperature .....................................+220 °C
Storage Temperature............................-55 to +125 °C
DC Voltage (pin 2) ................................................+6 V
DC Voltage (pin 6, 7).......................................... +11 V
RF Input Power (continuous)... 4 dB above Input P1dB
Junction Temperature .....................................+220 °C
AH103A Features
• 60 2700 MHz
• +27 dBm P1dB
• +46 dBm Output IP3
• 29 dB Gain @ 900 MHz
• Excellent ACPR
• MTTF > 100 Years
• Lead-free/green/RoHS-compliant
SOIC-8 Package w/ heat slug
• +27 dBm P1dB
• +46 dBm Output IP3
• 29 dB Gain @ 900 MHz
• Excellent ACPR
• MTTF > 100 Years
• Lead-free/green/RoHS-compliant
SOIC-8 Package w/ heat slug
AH103A Typical Application
• Mobile Infrastructure
• W-LAN / ISM / RFID
• MDS / MMDS Infrastructure
• W-LAN / ISM / RFID
• MDS / MMDS Infrastructure
AH103A Connection Diagram
AH103A-PCB900
PDF/DataSheet Download
- Datasheet: AH103A-PCB900
- File Size: 277814 KB
- Manufacturer: WJ Communication. Inc.
- Click here to Download
- ·AH101
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 219369 KB
- ·AH101-PCB
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 219369 KB
- ·AH102
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 285294 KB
- ·AH102A
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 241198 KB
- ·AH102A-G
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 241198 KB
- ·AH102A-PCB2000
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 241198 KB
- ·AH102A-PCB900
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 241198 KB
- ·AH102-PCB
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 285294 KB
AH103A Relative Products
AH103
The AH103 is a high gain, high linearity ½-Watt amplifier. This device is comprised of two individual MMIC amplifiers internally and can be used with an external interstage match for any of the mobile infrastructure frequency bands. The dual-stage amp...
AH102A
The AH102A is a medium power gain block that offers excellent dynamic range in a low-cost surface mount package. The combination of a single supply voltage and an internally matched device makes it ideal for both narrow and broadband applications.Superior th...
AH102
The AH102 is a medium power gain block that offers excellent dynamic range in a low cost surface mount package. The combination of a signal supply voltage and an internally matched device makes AH102 ideal for both narrow band and broadband applications. Sup...
AH101
The AH101 is a medium power gain block that offers excellent dynamic range in a low cost surface mount package. The combination of a single supply voltage and an unconditionally stable internally matched device, makes AH101 ideal for both narrow band and bro...

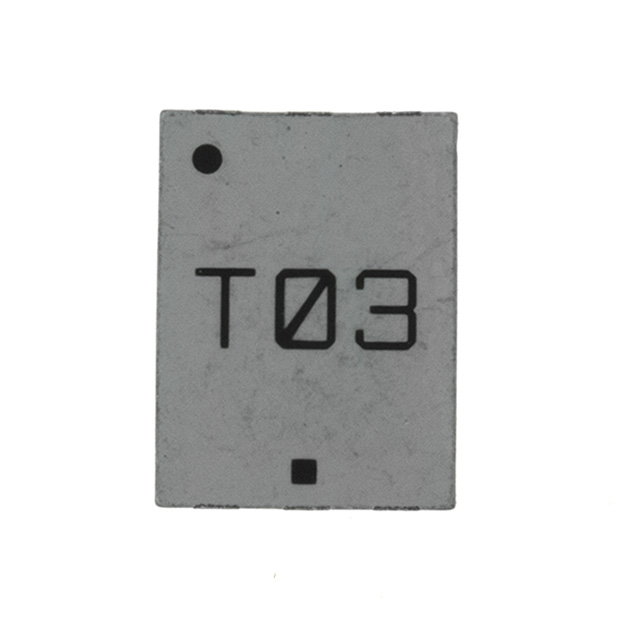

AH086M555003-T
