Purchase AH11, In-stock AH11 From SeekIC.
MFG:WJ Package Cooled:380 D/C:00+
Part Number: AH11
MFG: WJ
Package Cooled: 380
D/C: 00+
Description: The AH11 is a high power linear amplifier for use in digital communications systems.It combines low no...
- Table of contents:
AH11
-
Suppliers
DataSheet
General Description
AH11 General Description
The AH11 is a high power linear amplifier for use in digital communications systems.It combines low noise figure and high intercept point into a low cost SMT solution. This device extends the linear efficiency advantages of WJ's AH1 to higher power levels. The device packaging allows for both balanced and push-pull operation.
A mature and reliable GaAs MESFET technology is employed to maximize linearity at low power dissipation. The package is a thermally enhanced SOIC-8 and all devices are 100% RF tested.
AH11 Maximum Ratings
Operating Case -40 to +85°C
Storage Temperature -40 to +125°C
Junction Temperature +155°C
Thermal Resistance (JC) 28°C/W
Supply Voltage +6.0 V
Input RF Power (continuous) +13 dBm
Storage Temperature -40 to +125°C
Junction Temperature +155°C
Thermal Resistance (JC) 28°C/W
Supply Voltage +6.0 V
Input RF Power (continuous) +13 dBm
AH11 Features
• 250-3000 MHz Bandwidth
• 44 dBm Output IP3 in a Balanced Configuration
• 47 dBm Output IP3 in a Push-Pull Configuration
• 3.7 dB Noise Figure
• 12 dB Gain
• 27 dBm P1dB
• Surface Mount
• Thermally Enhanced SOIC-8 pkg
• Single +5 Volt Supply
• 44 dBm Output IP3 in a Balanced Configuration
• 47 dBm Output IP3 in a Push-Pull Configuration
• 3.7 dB Noise Figure
• 12 dB Gain
• 27 dBm P1dB
• Surface Mount
• Thermally Enhanced SOIC-8 pkg
• Single +5 Volt Supply
AH11 Connection Diagram
AH11
PDF/DataSheet Download
- Datasheet: AH11
- File Size: 130135 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·AH101
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 219369 KB
- ·AH101-PCB
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 219369 KB
- ·AH102
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 285294 KB
- ·AH102A
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 241198 KB
- ·AH102A-G
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 241198 KB
- ·AH102A-PCB2000
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 241198 KB
- ·AH102A-PCB900
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 241198 KB
- ·AH102-PCB
- ETC [ETC]
- Medium Power, High Linearity Amplifier
- 285294 KB
AH11 Relative Products

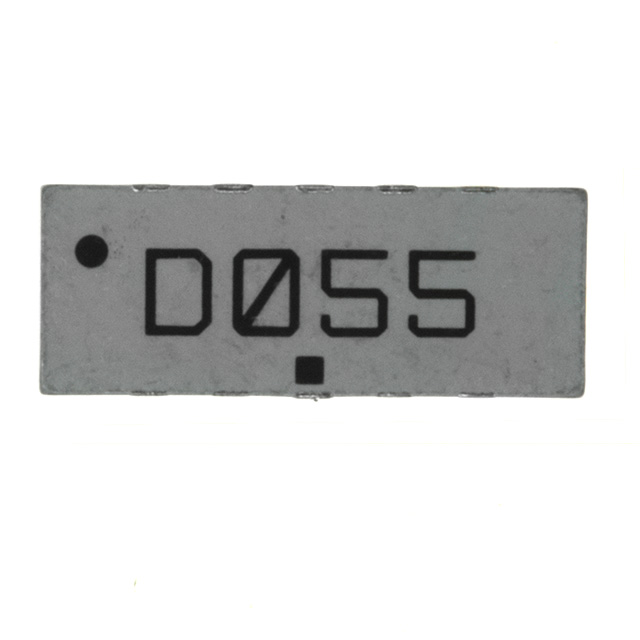

AH104N2450D1-T
ANTENNA W-LAN 2.45/5.4GHZ

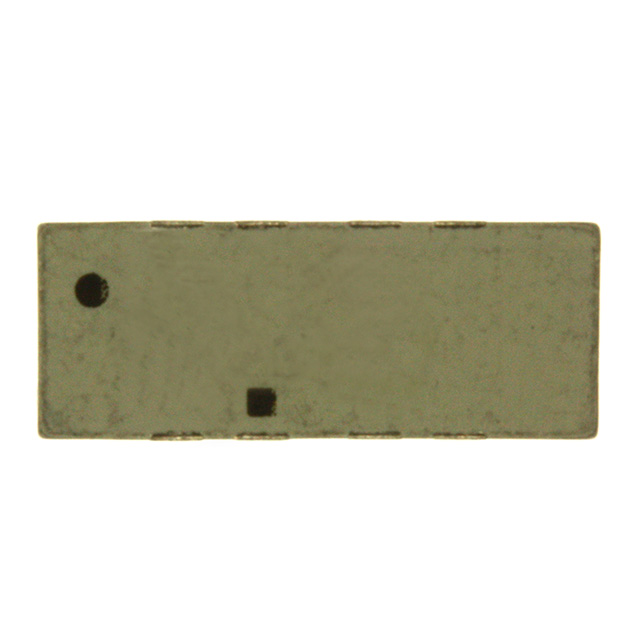

AH104F2650S1-T
ANT BLUETOOTH W-LAN ZIGBEE WIMAX
AH104F2550S1-T
ANTENNA MULTILAYER CHIP 2.4GHZ

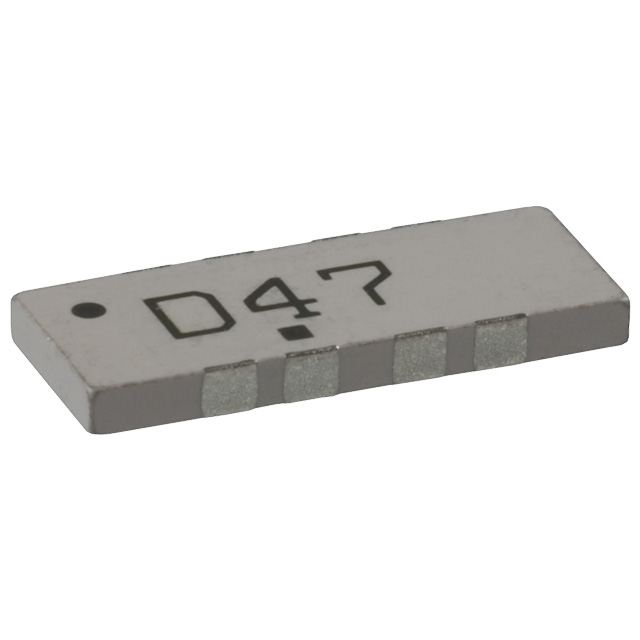

AH104F2450S1-T
