AHK1117

Features: Guaranteed 1.2V max Dropout at max current Adjustable or Factory programmed output voltages Excellent performance over line, load Current limit protection Over-Temperature protection SOT-223, TO-252 (DPAK) and TO-220 packagesApplication Active SCSI Terminators High Efficiency Linear Reg...

product image

AHK1117 Picture
See larger image
SeekIC No. : 004278954 Detail

AHK1117: Features: Guaranteed 1.2V max Dropout at max current Adjustable or Factory programmed output voltages Excellent performance over line, load Current limit protection Over-Temperature protection SOT-...

AHK1117 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AHK1117
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Guaranteed 1.2V max Dropout at max current
Adjustable or Factory programmed output voltages
Excellent performance over line, load
Current limit protection
Over-Temperature protection
SOT-223, TO-252 (DPAK) and TO-220 packages


Application

Active SCSI Terminators
High Efficiency Linear Regulators
Post Regulators for Switching Supplies
Battery Chargers
5V to 3.3V Linear Regulators


Pinout

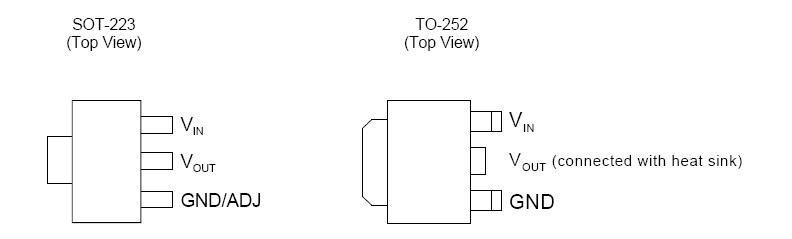

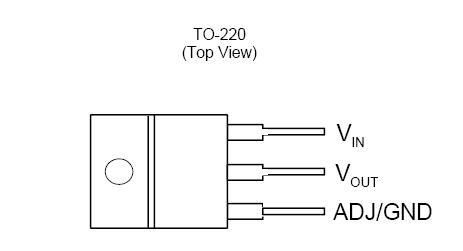

Connection Diagram Connection Diagram


Specifications

Symbol Description
Max
Units
VIN Input Voltage
15
V
IOUT DC Output Current
PD/(VIN-VO)
mA
TJ Operating Junction Temperature Range
0 to 125
°C
JA Thermal Resistance (SOT-223)
150
°C/W
JA Thermal Resistance (TO-252)
80
°C/W
JA Thermal Resistance (TO-220)
60
°C/W
PD Maximum Power Dissipation (SOT-223)
Internally
Limited
mW
PD Maximum Power Dissipation (TO-252)
mW
PD Maximum Power Dissipation (TO-220)
mW
TLEAD Maximum Soldering Temperature (at leads, 10 sec)
300
°C



Description

The AHK1117 is a Positive Linear Regulator designed to deliver 1 amp. It features adjustable or fixed output voltages and excellent performance over line and load variations. The device is able to protect itself and the load from short circuit conditions with integrated current limiting circuitry. Thermal shutdown is activated to prevent damage under extreme conditions.The AHK1117 is available in surface mount SOT-223 or TO-252 (DPAK), and through-hole TO-220 packages.
