Part Number: AK2127
Description: The TFA2127 is a bipolar integrated straight through receiver circuit in the frequency range of 50...80 kHz.The integra...
- Table of contents:
AK2127
-
Suppliers
DataSheet
General Description
AK2127 General Description
The TFA2127 is a bipolar integrated straight through receiver circuit in the frequency range of 50...80 kHz.The integrated circuit is designed for radio controlled clock application with high sensitivity.
AK2127 Maximum Ratings
|
Symbol |
min |
max |
Units | |
| Supply voltage 1 |
VCC1 |
0 |
5.25 |
V |
| Supply voltage 2 |
VCC2 |
0 |
5.25 |
V |
| Output voltage OPD |
VOPD |
-0.3 |
VCC1 |
V |
| Output voltage OPU |
VOPU |
-0.3 |
5.25 |
V |
| Input voltage SR |
VSR |
0 |
VCC1 |
V |
| Junction temperature |
Tj |
150 |
°C | |
| Ambient temperature range |
Tamb |
-25 |
+70 |
°C |
AK2127 Features
• Supply voltage range 1.2 ... 3.5 V
• Very high sensitivity < 1 V
• High selectivity by X-tal resonator
• Start/stop-function available
• Complementary output stages
• Minimum external components
• Very high sensitivity < 1 V
• High selectivity by X-tal resonator
• Start/stop-function available
• Complementary output stages
• Minimum external components

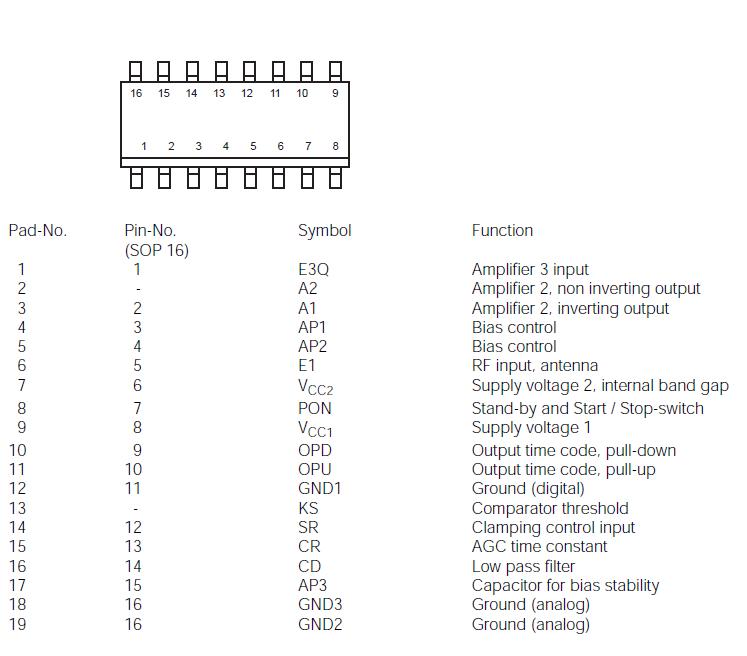

AK2127 Connection Diagram
AK2127
