Part Number: AK2504A
Description: The AK2504A is a DSP based line transceiver. It provides the analog transmit/receive line interface functions for DS3 (...
- Table of contents:
AK2504A
-
Suppliers
DataSheet
General Description
AK2504A General Description
The AK2504A is a DSP based line transceiver. It provides the analog transmit/receive line interface functions for DS3 (44.736MHz) /STS-1(51.84MHz) or E3(34.368MHz) interface.Transmitter includes on-hip pulse shaper, B3ZS/HDB3 Encoder. Pulse level adjustment function is very useful to put a pulse into pulse mask for any customer's system.
Receiver includes root-f equalizer, automatic-gain control, clock and data recovery, B3ZS/HDB3 Decoder, Loss-Of-Signal and Loss-Of-Lock alarm function.Local and Remote Loop-back function is included for system level trouble shooting.The device operates at a single +3.3 Volt supply and is transparent to the framing format.
AK2504A Maximum Ratings
| Parameter |
Symbol |
Min |
Max |
Units |
|
DC Supply (referenced to GND) (Note 1) |
V+ |
-0.3 |
4.6 |
V |
| Input Voltage, Any Pin |
Vin |
GND-0.3 |
(V+)+0.3 |
V |
| Input Current, Any Pin (Note 2) |
Iin |
- |
10 |
MA |
| Ambient Operating Temperature |
TA |
-40 |
85 |
°C |
| Storage Temperature |
Tstg |
-65 |
150 |
°C |
| Power Dissipation |
PD |
- |
1 |
W |
Normal operation is not guaranteed at these extremes.
Note; 1.GND=VSSV=VSSP=VSSB=VSST=VSSD=VSSS=0V
2.Transient currents of up to 100 mA will not cause SCR latch up.
AK2504A Features
- "Robust" DSP based line transceiver
- Provides Complete Analog Line Transmitter and Receiver function for DS3, STS-1 and E3 Applications
- Transmit Pulse Level Adjustment
- Provides Line Equalization, and Clock and Data Recovery Functions
- Compliance with Bellcore GR-499-CORE and GR-253-CORE, ANSI T1.102, T1.404,
- Compliance with ITU-T G.703 and G.823
- Local/Remote Loopback functions
- B3ZS/HDB3 Encoder/Decoder
- Low voltage supply : +3.3V
- Provides Complete Analog Line Transmitter and Receiver function for DS3, STS-1 and E3 Applications
- Transmit Pulse Level Adjustment
- Provides Line Equalization, and Clock and Data Recovery Functions
- Compliance with Bellcore GR-499-CORE and GR-253-CORE, ANSI T1.102, T1.404,
- Compliance with ITU-T G.703 and G.823
- Local/Remote Loopback functions
- B3ZS/HDB3 Encoder/Decoder
- Low voltage supply : +3.3V
AK2504A Connection Diagram
AK2504A
PDF/DataSheet Download
- Datasheet: AK2504A
- File Size: 190202 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·AK200B10
- LEM
- AC Current transducer
- 207342 KB
- ·AK2048D
- AKM [Asahi Kasei Microsystems]
- 2M CMI Transceiver
- 90293 KB
- ·AK20D
- ETC [ETC]
- Standard Pitch DIP Adapters
- 159089 KB
- ·AK20D300-HSOP
- ACCUTEK MICROCIRCUIT CORPORATION
- 16 Pin to 24 Pin DIP Adapters
- 216600 KB
- ·AK20D300-NWSO
- ACCUTEK MICROCIRCUIT CORPORATION
- 16 Pin to 24 Pin DIP Adapters
- 216600 KB
- ·AK20D-NWSO
- ETC [ETC]
- Standard Pitch DIP Adapters
- 159089 KB
- ·AK20D-PLCC
- ETC [ETC]
- Standard Pitch DIP Adapters
- 159089 KB
- ·AK20DS300-PLCC
- ACCUTEK MICROCIRCUIT CORPORATION
- 16 Pin to 24 Pin DIP Adapters
- 216600 KB
AK2504A Relative Products
AK250-3-R

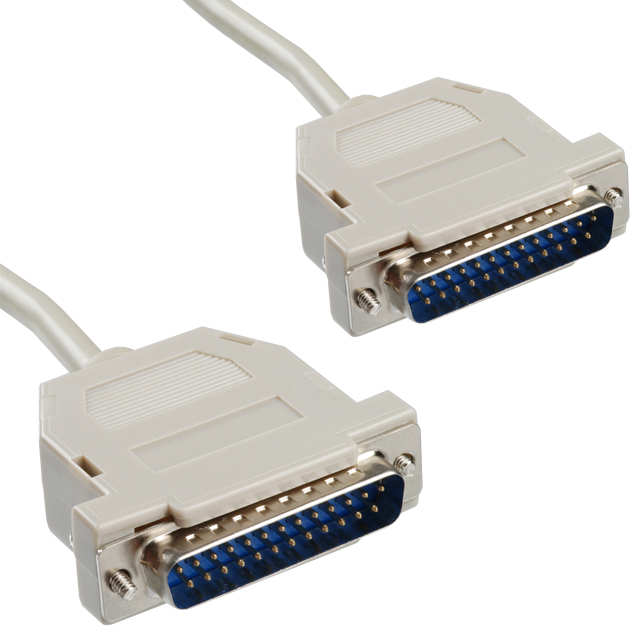

CABLE NULL MODEM DB25M TO DB25M
