General Description
AK4181A General Description
The AK4181A is a 4-wire touch screen controller that incorporates a 12-bit 125kHz sampling SAR A/D converter.The AK4181A can detect the pressed screen location by performing two A/D conversions. In addition to location, the
AK4181A also measures touch screen pressure.On-chip VREF can be utilized for two analog auxiliary inputs and battery monitoring, with the ability to measure voltages from 0V to 5V.The AK4181A also has an on-chip temperature sensor.
AK4181A Maximum Ratings
GND=0V (Note 1)
Note 1.All voltages with respect to ground.
| Parameter |
Symbol |
min |
max |
Units |
| Power Supplies |
VCC |
−0.3 |
6.0 |
V |
| Input Current, Any Pin Except Supplies |
IIN |
- |
±10 |
mA |
| Input Voltage |
VIN |
-0.3 |
6.0(VCC+0.3) |
V |
| Touch Panel Drive Current |
IOUTDRV |
-0.3 |
50 |
mA |
| Ambient Temperature (powered applied) |
Ta |
-20 |
70 |
°C |
| Storage Temperature |
Tstg |
-65 |
150 |
°C |
AK4181A Features
Sampling Frequency: 125kHz(max)
Pen Pressure Measurement
On-Chip Thermo Sensor
Two Auxiliary Analog Inputs
Direct Battery Measurement
4-wire I/F
On-Chip Voltage Reference (2.5V)
12 bit SAR type A/D Converter with S/H circuit
Low Power Consumption (250A)
Low Voltage Operation (2.7V - 3.6V)
Package 16pin TSSOP
Pen Pressure Measurement
On-Chip Thermo Sensor
Two Auxiliary Analog Inputs
Direct Battery Measurement
4-wire I/F
On-Chip Voltage Reference (2.5V)
12 bit SAR type A/D Converter with S/H circuit
Low Power Consumption (250A)
Low Voltage Operation (2.7V - 3.6V)
Package 16pin TSSOP

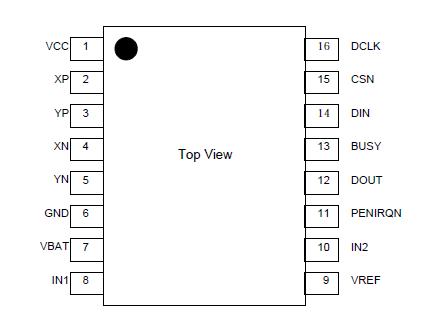

AK4181A Connection Diagram
