AK4355

Features:

Sampling Rate: 8kHz to 192kHz
24Bit 8 times Digital Filter with Slow roll-off option
THD+N: -90dB
DR, S/N: 106dB
High Tolerance to Clock Jitter
Low Distortion Differential Output
Digital De -emphasis for 32, 44.1 & 48kHz sampling
Zero Detect Pin
Channel Independent Digital Attenuator with soft-transition
Soft Mute
I/F format: 24-Bit MSB justified, 24/20/16-Bit LSB justified or I²S
Master Clock
          Normal Speed: 256fs, 384fs, 512fs or 768fs
          Double Speed: 128fs, 192fs, 256fs or 384fs
          Quad Speed: 128fs, 192fs
Power Supply: 4.75 to 5.25V
28pin VSOP Package

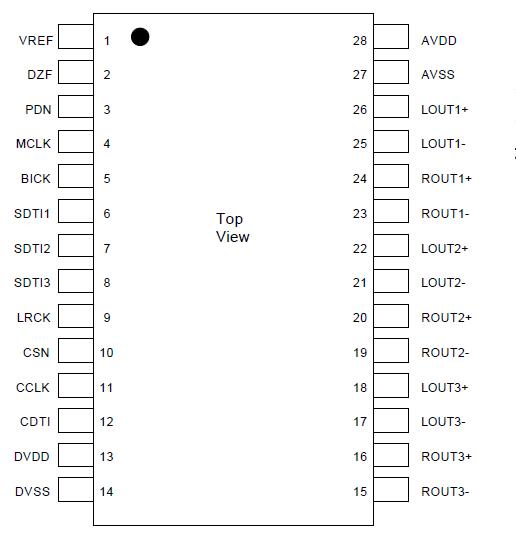

Pinout




Specifications

(AVSS, DVSS=0V; Note 1)

Parameter		Symbol	min	max	Units
Power Supplies	Analog Digital |AVSS-DVSS| (Note 2)	AVDD DVDD GND	-0.3 -0.3 -	6.0 6.0 0.3	V V V
Input Current, Any Pin Except Supplies		IIN	-	±10	mA
Analog Input Voltage		VINA	-0.3	AVDD+0.3	V
Digital Input Voltage		VIND	-0.3	DVDD+0.3	V
Ambient Temperature (powered applied)		Ta	-40	85	°C
Storage Temperature		Tstg	-65	150	°C

Note: 1. All voltages with respect to ground.
          2. AVSS and DVSS must be connected to the same analog ground plane.
WARNING: Operation at or beyond these limits may results in permanent damage to the device.
                  Normal operation is not guaranteed at these extremes.


Description

The AK4355 offers the perfect mix for cost and performance based multi-channel audio systems. AKM's advanced multi-bit architecture delivers a wide dynamic range and low outband noise. The AK4355 has full differential SCF outputs, removing the need for AC coupling capacitors and increasing performance for systems with excessive clock jitter. The 24 Bit word length and 192kHz sampling rate make this part ideal for a wide range of application including DVD-Audio.
