AK4356

Features:

128x Oversampling
Sampling Rate up to 192kHz for 2 channels mode,
                                    96kHz for 6 channels mode
24Bit 8 times Digital Filter with Slow roll-off option
       Ripple: ±0.005dB, Attenuation: 75dB
THD+N: -94dB
DR, S/N: 112dB
High Tolerance to Clock Jitter
Low Distortion Differential Output
Channel Independent Digital De-emphasis for 32, 44.1 & 48kHz sampling
Channel Independent Zero Detect Pin
Channel Independent Digital Attenuator with soft-transition
Soft Mute
3-wire Serial Interface for Volume Control
I/F format: MSB justified, LSB justified, I²S
TTL Level Digital I/F
Master Clock
                Normal Speed: 256fs, 384fs, 512fs or 768fs
                Double Speed: 128fs, 192fs, 256fs or 384fs
Power Supply: 4.75 to 5.25V
44pin LQFP Package
Ta: -40 to 85°C

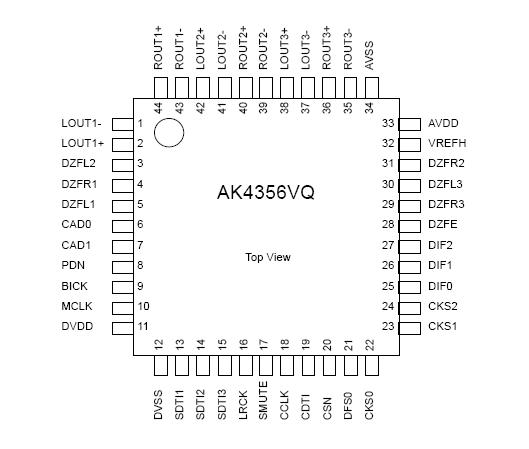

Pinout




Specifications

(AVSS, DVSS=0V; Note 1)

Parameter		Symbol	min	max	Units
Power Supply:	Analog Digital |AVSS-DVSS| (Note 2)	AVDD DVDD DGND	-0.3 -0.3 -	6.0 6.0 0.3	V V V
Input Current (any pins except for supplies)		IIN	-	±10	mA
Analog Input Voltage		VINA	-0.3	AVDD+0.3	V
Digital Input Voltage		VIND	-0.3	DVDD+0.3	V
Ambient Temperature (Powered applied)		Ta	-40	85	°C
Storage Temperature		Tstg	-65	150	°C

Note:1. All voltages with respect to ground.
         2. AVSS and DVSS must be connected to the same analog ground plane.


Description

The AK4356 is a high performance six channels DAC corresponding to 96kHz sampling mode of DVD.Two channels of them can operate up to 192kHz sampling fully correspond to DVD-Audio standards. The AK4356 introduces the advanced multi-bit architecture for modulator. This new architecture achieves the wider dynamic range, while keeping much the same superior distortion characteristics as conventional Single Bit way. In the AK4356, the analog outputs are filtered in the analog domain by switched-capacitor filter (SCF) with high tolerance to clock jitter. The analog outputs are full differential output, so the device is suitable for hi-end applications.
