AK4358

Features:

􀂆 Sampling Rate Ranging from 8kHz to 192kHz
􀂆 24Bit 8 times Digital Filter with Slow roll-off option
􀂆 THD+N: -94dB
􀂆 DR, S/N: 112dB
􀂆 High Tolerance to Clock Jitter
􀂆 Low Distortion Differential Output
􀂆 DSD Data input available
􀂆 Digital De-emphasis for 32, 44.1 & 48kHz sampling
􀂆 Zero Detect function
􀂆 Channel Independent Digital Attenuator with soft-transition (3 Speed mode)
􀂆 Soft Mute
􀂆 3-wire Serial and I²C Bus P I/F for mode setting
􀂆 I/F format: MSB justified, LSB justified (16bit, 20bit, 24bit), I²S, TDM or DSD
􀂆 Master clock: 256fs, 384fs, 512fs or 768fs (PCM Normal Speed Mode)
                         128fs, 192fs, 256fs or 384fs (PCM Double Speed Mode)
                         128fs or 192fs (PCM Quad Speed Mode)
                         512fs or 768fs (DSD Mode)
􀂆 Power Supply: 4.75 to 5.25V
􀂆 48pin LQFP Package

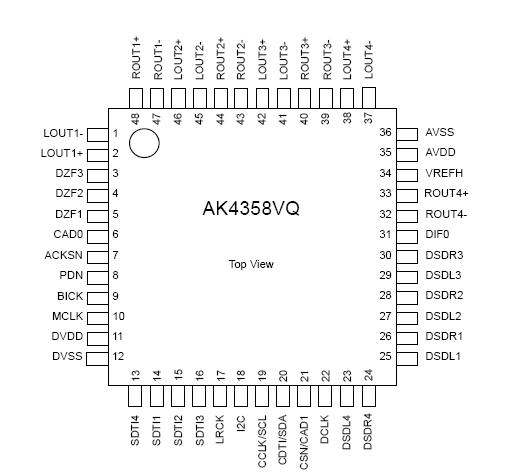

Pinout




Specifications

(AVSS, DVSS=0V; Note 1)

Parameter		Symbol	min	max	Units
Power Supply:	Analog Digital |AVSS-DVSS| (Note 2)	AVDD DVDD DGND	-0.3 -0.3 -	6.0 6.0 0.3	V V V
Input Current (any pins except for supplies)		IIN	-	±10	mA
Analog Input Voltage		VINA	-0.3	AVDD+0.3	V
Digital Input Voltage		VIND	-0.3	DVDD+0.3	V
Ambient Temperature (Powered applied)		Ta	-40	85	°C
Storage Temperature		Tstg	-65	150	°C

Note 1. All voltages with respect to ground.
Note 2. AVSS and DVSS must be connected to the same analog ground plane.



Description

The AK4358 is eight channels 24bit DAC corresponding to digital audio system. Using AKM's advanced multi bit architecture for its modulator it delivers a wide dynamic range while preserving linearity for improved THD+N performance. The AK4358 has full differential SCF outputs, removing the need for AC coupling capacitors and increasing performance for systems with excessive clock jitter. The AK4358 accepts 192kHz PCM data and 1-Bit DSD data, ideal for a wide range of applications including DVD-Audio and SACD.
