General Description
AK4386 General Description
The AK4386 is a 24bit low voltage & low power stereo DAC. The AK4386 uses the Advanced Multi-Bit DS architecture, this architecture achieves DR=100dB at 3V operation. The AK4386 integrates a combination of SCF and CTF filters increasing performance for systems with excessive clock jitter. The AK4386 is suitable for the portable audio system like MP3 and the home audio systems like STB and TV, etc as low power and small package. The AK4386 is offered in a space saving 16pin TSSOP package.
AK4386 Maximum Ratings
(VSS=0V; Note 1)
Note 1. All voltages with respect to ground.
|
Parameter |
Symbol |
min |
max |
Units |
| Power Supply |
VDD |
-0.3 |
4.6 |
V |
| Input Current (any pins except for supplies) |
IIN |
- |
±10 |
mA |
| Digital Input Voltage |
VIND |
-0.3 |
VDD+0.3 |
V |
| Ambient Temperature (Powered applied) |
Ta |
-40 |
85 |
°C |
| Storage Temperature |
Tstg |
-65 |
150 |
°C |
Note 1. All voltages with respect to ground.
AK4386 Features
Sampling Rate: 8kHz ~ 96kHz
24-Bit 8 times FIR Digital Filter
SCF with high tolerance to clock jitter
Single-ended output buffer
Digital de-emphasis for 44.1kHz sampling
I/F Format: 24-Bit MSB justified, 16/24-Bit LSB justified, I2S Compatible
Master Clock:
512/768/1024/1536fs for Half Speed (8kHz ~ 24kHz)
256/384/512/768fs for Normal Speed (8kHz ~ 48kHz)
128/192/256/384fs for Double Speed (48kHz ~ 96kHz)
CMOS Input Level
THD+N: -86dB
DR, S/N: 100dB(@VDD=3.0V)
Power Supply: 2.2 to 3.6V
Ta = -40 ~ 85°C
16pin TSSOP
24-Bit 8 times FIR Digital Filter
SCF with high tolerance to clock jitter
Single-ended output buffer
Digital de-emphasis for 44.1kHz sampling
I/F Format: 24-Bit MSB justified, 16/24-Bit LSB justified, I2S Compatible
Master Clock:
512/768/1024/1536fs for Half Speed (8kHz ~ 24kHz)
256/384/512/768fs for Normal Speed (8kHz ~ 48kHz)
128/192/256/384fs for Double Speed (48kHz ~ 96kHz)
CMOS Input Level
THD+N: -86dB
DR, S/N: 100dB(@VDD=3.0V)
Power Supply: 2.2 to 3.6V
Ta = -40 ~ 85°C
16pin TSSOP

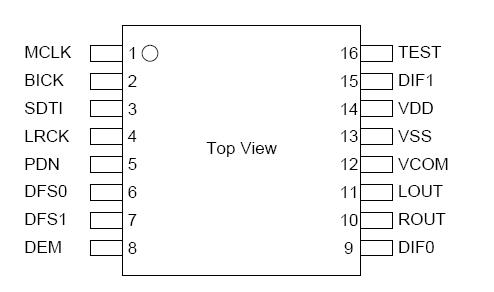

AK4386 Connection Diagram
AK4386
