AK4395

Features:

128x Oversampling
Sampling Rate up to 192kHz
High Performance 24Bit 8x Digital Filter (Slow Roll-off Option)
Ripple: ±0.0002dB, Attenuation: 110dB
High Tolerance to Clock Jitter
Low Distortion Differential Output
Digital deemphasis
for 32, 44.1 & 48kHz sampling
Channel Independent Digital Volume with Soft-transition
Soft Mute
THD+N: 100dB
DR, S/N: 120dB
I/F format: MSB justified, 16/20/24bit LSB justified, I2S
Master Clock: Normal Speed: 256fs, 384fs, 512fs or 768fs
Double Speed: 128fs, 192fs, 256fs or 384fs
Quad Speed: 128fs or 192fs
Power Supply: 5V±5%
TTL Level Digital I/F
Small Package: 28pin VSOP
Pin Compatible with AK4393/4

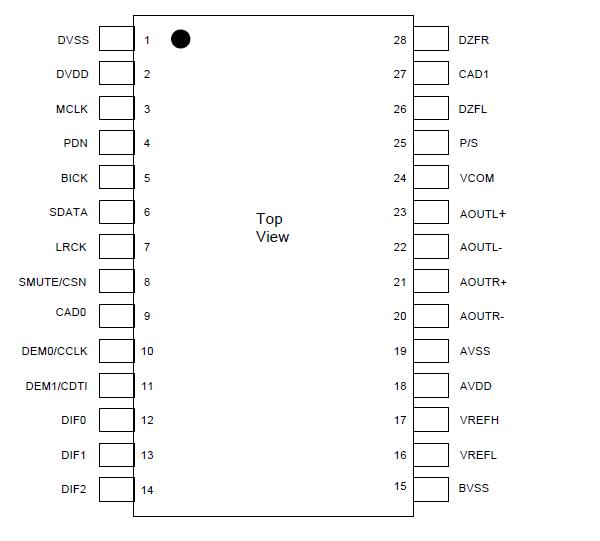

Pinout




Specifications

(AVSS, BVSS, DVSS = 0V; Note 1)

Parameter		Symbol	min	max	Units
Power Supplies	Analog Digital | BVSS-DVSS | (Note 2)	AVDD DVDD GND	-0.3 -0.3 -	6.0 6.0 0.3	V V V
Input Current, Any Pin Except Supplies		IIN	-	±10	mA
Input Voltage		VIND	-0.3	DVDD+0.3	V
Ambient Temperature (powered applied)		Ta	-10	70	°C
Storage Temperature		Tstg	-65	150	°C

Notes: 1. All voltages with respect to ground.
            2. AVSS, BVSS and DVSS must be connected to the same analog ground plane.
WARNING: Operation at or beyond these limits may result in permanent damage to the device.
                  Normal operation is not guaranteed at these extremes.


Description

The AK4395 is a high performance stereo DAC for the 192kHz sampling mode of DVD-Audio including a 24bit digital filter. The digital filter has high stopband attenuation with 110dB or more that reduces wide band aliasing noise. The AK4395 introduces the advanced multi-bit system for  modulator. This new architecture achieves the wider dynamic range, while keeping much the same superior distortion characteristics as conventional Single-Bit way. The analog outputs are filtered in the analog domain by switchedcapacitor filter (SCF) with high tolerance to clock jitter. The AK4395 also includes digital volume, so the device is suitable for multi-channel audio system.
