Part Number: AK4525
MFG: SSOP
D/C: 2005+
Description: The AK4525 has a dynamic range of 100dB and is well-suited middle-range MD, surround system,musical instruments and car...
- Table of contents:
AK4525
-
Suppliers
DataSheet
General Description
AK4525 General Description
The AK4525 has a dynamic range of 100dB and is well-suited middle-range MD, surround system,musical instruments and car audio. Analog inputs are full-differential with single-end capability. Analog outputs are single-ended. The AK4525 has X' tal oscillation circuit and master mode.
AK4525 Maximum Ratings
(AGND, DGND=0V; Note 1)
Notes: 1. All voltages with respect to ground.
2. AGND and DGND must be same voltage.
|
Parameter |
Symbol |
min |
max |
Units | |
| Power Supply | Analog Digital |AGND DGND| (Note 2) |
VA VD GND |
-0.3 -0.3 - |
6.0 6.0 0.3 |
V V V |
| Input Current (any pins except for supplies) |
IIN |
- |
±10 |
mA | |
| Analog Input Voltage (Note 3) |
VINA |
-0.3 |
VA+0.3 |
V | |
| Digital Input Voltage |
VIND |
-0.3 |
VT+0.3 |
V | |
| Ambient Temperature (Powered applied) |
Ta |
-40 |
85 |
°C | |
| Storage Temperature |
Tstg |
-65 |
150 |
°C | |
Notes: 1. All voltages with respect to ground.
2. AGND and DGND must be same voltage.
AK4525 Features
Stereo ADC
- 64x Oversampling
- Sample Rate Ranging from 32kHz to 48kHz
- S/(N+D): 92dB
- Dynamic range, S/N: 100dB
- Digital HPF for offset cancellation
Stereo DAC
- 128x Oversampling
- Sampling Rate Ranging from 32kHz to 48kHz
- 2nd order SCF + 2nd order CTF
- Digital de-emphasis for 32kHz, 44.1kHz, 48kHz sampling
- S/(N+D): 90dB
- Dynamic Range, S/N: 100dB
- Soft Mute
High Jitter Tolerance
Master Clock: 256fs, 384fs, 512fs
X' tal Oscillation circuit
Master/Slave Mode
Analog Power Supply: 4.5 to 5.5V, Digital Power Supply: 3.1 to 5.5V
- 64x Oversampling
- Sample Rate Ranging from 32kHz to 48kHz
- S/(N+D): 92dB
- Dynamic range, S/N: 100dB
- Digital HPF for offset cancellation
Stereo DAC
- 128x Oversampling
- Sampling Rate Ranging from 32kHz to 48kHz
- 2nd order SCF + 2nd order CTF
- Digital de-emphasis for 32kHz, 44.1kHz, 48kHz sampling
- S/(N+D): 90dB
- Dynamic Range, S/N: 100dB
- Soft Mute
High Jitter Tolerance
Master Clock: 256fs, 384fs, 512fs
X' tal Oscillation circuit
Master/Slave Mode
Analog Power Supply: 4.5 to 5.5V, Digital Power Supply: 3.1 to 5.5V

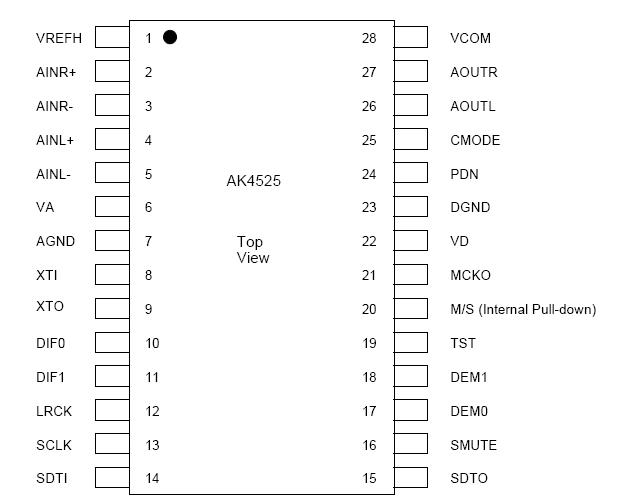

AK4525 Connection Diagram
AK4525
PDF/DataSheet Download
- Datasheet: AK4525
- File Size: 156097 KB
- Manufacturer: AKM [Asahi Kasei Microsystems]
- Click here to Download
