AK4532

Features:

• 2ch Audio CODEC
• 2ch stereo including 1ch mono recording mixer with L/R, R/L, L/L and R/R switching
• 2ch stereo playback mixer
• Mic input with 26 dB optional gain
• High Jitter Tolerance
• Interface compatible with AKM's AK4531
• Sampling Rate: 4 kHz to 50 kHz
• 3-wire Serial Interface for Mixer Control
• 5 V operation, can connect to 3.3 V Digital Controller.
• Low power consumption - 150 mW
• Power down mode
• Small low profile package - 24 pin VSOP.

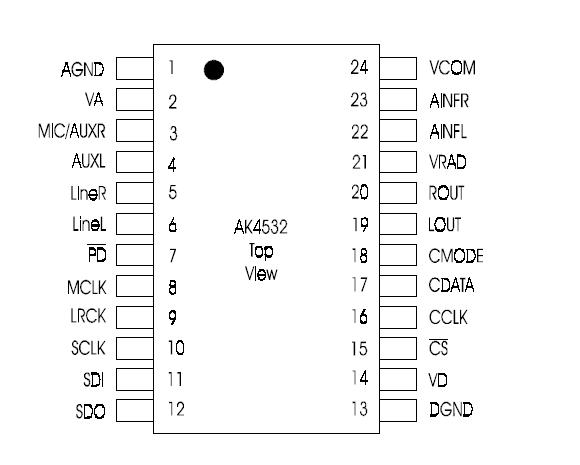

Pinout




Specifications

AGND, DGND = 0 V

Parameter		Symbol	min	max	Units
Power Supplies	Analog Digital	VA VD	-0.3 -0.3	6.0 6.0 or VA+0.3	V V
Input Current, Any Pin Except Supplies		IIN	-	±10	mA
Analog Input Voltage Range		VINA	-0.3	6.0 or VA+0.3	V
Digital Input Voltage		VIND	-0.3	6.0 or VA+0.3	V
Ambient Temperature (powered applied)		Ta	-20	85	°C
Storage Temperature		Tstg	-65	150	°C

Note: 1. All voltages with respect to ground.
          2. Max value is higher voltage of 6.0 or VA+0.3V.


Description

The AK4532 is a low-cost high-quality 16-Bit CODEC designed specifically for Internet Boxes, Network PCs, and to interface with audio/video controller ICs for standard PC applications. AKM's AK4532 serial interface mode simplifies the design process on existing and new audio projects. The converters can have a range of 4 to 50 kHz. For voice mail applications, an internal 26 dB microphone preamp has been added and because of the internal input mixer, music or other sounds can easily be mixed with voice.
