AK4565

Features:

1. Resolution: 20bits
2. Recording Functions
     ` Four Stereo Inputs Selector
     ` Input PGA (Programmable Gain Amplifier) with ALC (Automatic Level Control)
     ` FADEIN / FADEOUT
     ` Digital HPF for DC-offset cancellation (fc=3.7Hz@fs=48kHz)
3. Playback Function
     ` Digital De-emphasis Filter (tc = 50/15ms, fs=32k, 44.1k and 48kHz)
4. Power Management
5. CODEC
     ` Single-ended Inputs/Outputs
     ` Input / Output Level: 1.5Vpp@VREF=2.5V (= 0.6 x VREF)
     ` S/(N+D): 83dB(ADC), 86dB(DAC) @VREF=2.5V
     ` DR, S/N: 87dB(ADC), 91dB(DAC) @VREF=2.5V
6. Master Clock: 256fs/384fs
7. Sampling Rate: 8kHz ~ 50kHz
8. Audio Data Interface Format: MSB-First, 2's compliment
     ` ADC: 20bit MSB justified, I<sup>2</sup>S
     ` DAC: 20bit MSB justified, 16/20bit LSB justified, I²S
9. mP Interface: 4-wire
10.Power Supply
     ` CODEC, IPGA: 2.3 ~ 3.6V (typ.2.5V)
     ` Digital I/F: 1.5 ~ 3.6V(typ.2.5V)
11.Power Supply Current
     ` ALL Power ON: 12.5mA
     ` IPGA + ADC: 8mA
     ` DAC: 5.5mA
12. Ta = - 40 ~ 85 ºC
13. Package: 28pin VSOP
14. AK4563A pin-compatible

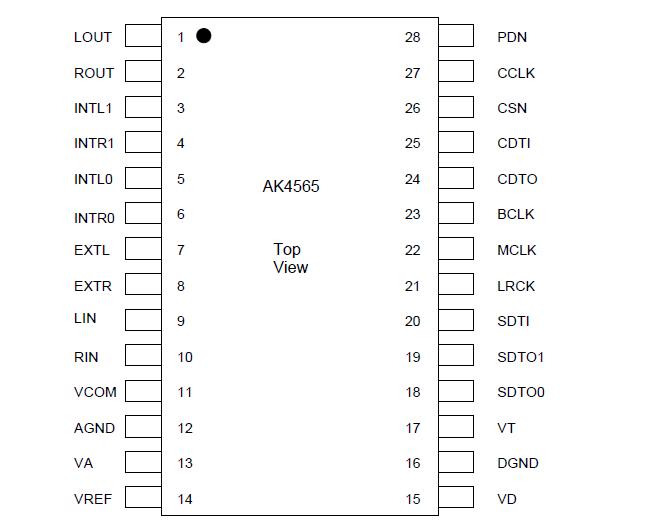

Pinout




Specifications

(AGND, DGND=0V; Note 1)

Parameter		Symbol	min	max	Units
Power Supplies	Analog (VA pin) Digital 1 (VD pin) Digital 2 (VT pin) | DGND AGND | (Note 2)	VA VD VT GND	-0.3 -0.3 -0.3 -	4.6 4.6 4.6 0.3	V V V V
Input Current, Any Pin Except Supplies		IIN	-	±10	mA
Analog Input Voltage (Note 3)		VINA	-0.3	VA+0.3	V
Digital Input Voltage(Note 4)		VIND	-0.3	VT+0.3	V
Ambient Temperature (powered applied)		Ta	-40	85	°C
Storage Temperature		Tstg	-65	150	°C

Note 1. All voltages with respect to ground.
Note 2. AGND and DGND must be connected to the same analog plane.
Note 3. INTL0, INTR0, INTL1, INTR1, EXTL, EXTR, LIN, RIN and VREF pins
Note 4. PDN, MCLK, BCLK, LRCK, SDTI, CSN, CCLK and CDTI pins


Description

The AK4565 is a low power voltage, 20bit CODEC. The recording feature includes four stereo inputs selector which switches among microphone and line inputs etc. And the input PGA has an ALC function, making it suitable for microphone application. The AK4565 has a dedicated power supply pin for digital I/F, which can support I/O level down to 1.5V. The AK4565 can be powered-down partly and is suitable for portable application.
