AK4586

Features:

 2ch 24bit ADC
       - 64x Oversampling
       - Sampling Rate up to 96kHz
       - Linear Phase Digital Anti-Alias Filter
       - Single-Ended Input
       - S/(N+D): 90dB
       - Dynamic Range, S/N: 100dB
       - Digital HPF for offset cancellation
       - Overflow flag
  6ch 24bit DAC
       - 128x Oversampling
       - Sampling Rate up to 96kHz
       - 24bit 8 times Digital Filter
       - Single-Ended Outputs
       - On-chip Switched-Capacitor Filter
       - S/(N+D): 90dB
       - Dynamic Range, S/N: 106dB
       - Individual channel digital volume with 256 levels and 0.5dB step
       - Soft mute
       - Zero Detect Function
  4 inputs 24bit DIR
       - Supports IEC60958 consumer mode, S/PDIF,
              EIAJ CP1201 consumer mode
       - Low jitter Analog PLL
       - PLL Lock Range: 32k ∼ 96kHz
       - Clock Source: PLL or X'tal
       - 4 channel Receivers input and 1 through transmission output
       - De-emphasis for 32kHz, 44.1kHz and 48kHz
       - Dedicated Detect Pins
              Non-PCM Bit Stream Detect, DTS-CD Bit Stream Detect,
              Validity Flag Detect, 96kHz Sampling Detect,
              Unlock & Parity Error Detect, Emphasis Detect, fs change Detect
       - Supports up to 24bit Audio Data Format
       - Audio I/F: Master or Slave Mode
       - 32bits Channel Status Buffer
       - Burst Preamble bit Pc, Pd Buffer for Non-PCM bit stream
       - Master Clock Outputs:128fs/256fs/512fs
  I/F format: MSB justified, LSB justified(20bit,24bit), I2S or TDM
  High Jitter Tolerance
  TTL Level Digital I/F
  4-wire Serial and I2C Bus P I/F for mode setting
  Extenal Master Clock Input:
       - 256fs, 384fs or 512fs for fs=44.1kHz to 48kHz
       - 128fs, 192fs or 256fs for fs=88.2kHz to 96kHz
  Power Supply: 4.5 to 5.5V
  Power Supply for output buffer: 2.7 to 5.5V
  Small 44pin LQFP

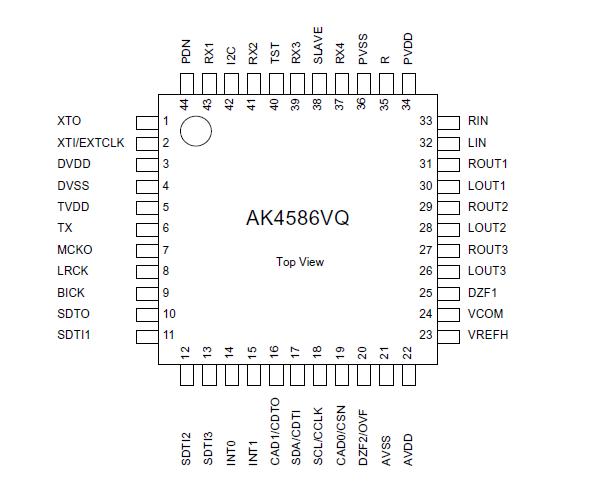

Pinout




Specifications

(AVSS, DVSS, PVSS=0V; Note 1)

Parameter		Symbol	min	max	Units
Power Supplies	Analog Digital PLL Output buffer |AVSS-DVSS| (Note 2) |AVSS-PVSS| (Note 2)	AVDD DVDD PVDD TVDD GND1 GND2	-0.3 -0.3 -0.3 -0.3 - -	6.0 6.0 6.0 6.0 0.3 0.3	V V V V V V
Input Current, Any Pin Except Supplies		IIN	-	±10	mA
Analog Input Voltage VINA -0.3 AVDD+0.3 V		VINA	-0.3	AVDD+0.3	V
Digital Input Voltage (XTI/EXTCLK, SDTI1-3, CDTI/SDA, CCLK/SCL, CSN/CAD0 pins) (LRCK, BICK, CDTO/CAD1 pins) (RX1-4, SLAVE, TST, I2C, PDN pins)		VIND1 VIND2 VIND3	-0.3 -0.3 -0.3	DVDD+0.3 TVDD+0.3 PVDD+0.3	V V V
Ambient Temperature (powered applied)		Ta	-40	85	°C
Storage Temperature		Tstg	-65	150	°C

Notes:
1. All voltages with respect to ground.
2. AVSS, DVSS and PVSS must be connected to the same analog ground plane.


Description

The AK4586 is a single chip CODEC that includes two channels of ADC and six channels of DAC. The ADC outputs 24bit data and the DAC accepts up to 24bit input data. The ADC has the Enhanced Dual Bit architecture with wide dynamic range. The DAC introduces the new developed Advanced Multi-Bit architecture, and achieves wider dynamic range and lower outband noise.The AK4586 also has a digital audio receiver (DIR) compatible with 96kHz, 24bits. The product can automatically detect a Non-PCM bit stream. The digital audio output can be selected from the ADC output or the digital input. Control may be set directly by programmed through a separate serial interface.The AK4586 has a dynamic range of 100dB for ADC, 106dB for DAC and is well suited for digital surround for home theater and car audio. The product also has the balance volume control corresponding to the AC-3 system. The product is available in a small 44pin LQFP package which will reduce system space.
*AC-3 is a trademark of Dolby Laboratories.
