AK5353

Features:

Stereo DS ADC
On-Chip Digital Anti-Alias Filtering
Single-ended Input
Digital HPF for DC-Offset cancel
S/(N+D): 84dB@5V, 80dB@3V for 48kHz
DR: 96dB@5V, 92dB@3V for 48kHz
S/N: 96dB@5V, 92dB@3V for 48kHz
Sampling Rate Ranging from 4kHz to 96kHz
Master Clock:
   256fs/384fs/512fs (~48kHz)
   256fs/384fs (~96kHz)
Low Power Dissipation: 70mW
Small 16pin TSSOP Package
Power Supply: 2.7~5.5V (~48kHz)
                           4.5~5.5V (~96kHz)
Ta=-40~85°C
Input level: TTL/CMOS selectable
Output format: 24bit MSB justified / I2S selectable

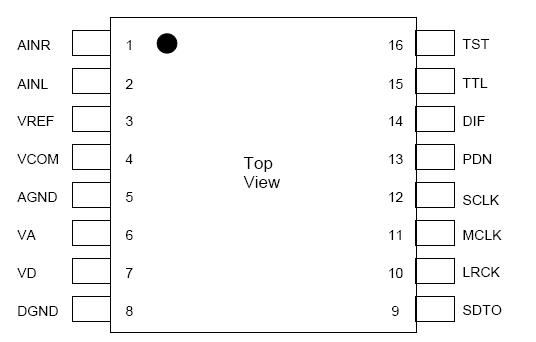

Pinout

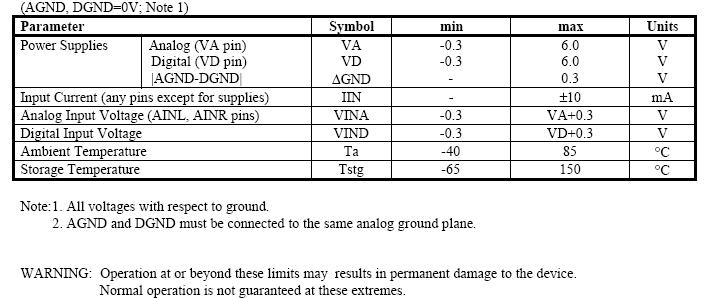

Specifications




Description
