AK5354

Features:

1. Resolution : 20bits
2. Recording Functions
          ` 2-Stereo Inputs Selector
          ` Analog Input PGA
          ` Monaural Mixing
          ` Digital HPF for DC-offset cancellation (fc=3.4Hz@fs=44.1kHz)
3. ADC Characteristics
          ` Input Level : 1.5Vpp@VA=2.5V (= 0.6 x VA)
          ` S/(N+D) : 84dB
          ` DR, S/N : 89dB
4. 3-wire Serial Control I/F
5. Master Clock : 256fs/384fs
6. Audio Data Format : MSB First, 2's compliment
         ` 20bit MSB justified or I2S
8. Power Supply
         ` VA : 2.1 ~ 3.3V (typ. 2.5V)
         ` VD : 1.8 ~ 3.3V (typ. 2.5V)
9. Power Supply Current
         ` IPGA + ADC : 7mA
10. Ta = -40 ~ 85°C
11. Package : 16pin TSSOP

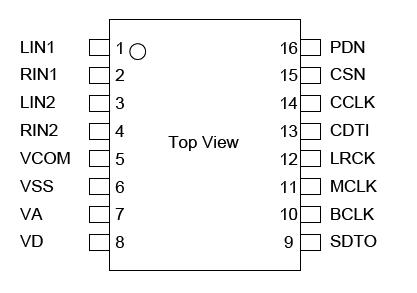

Pinout

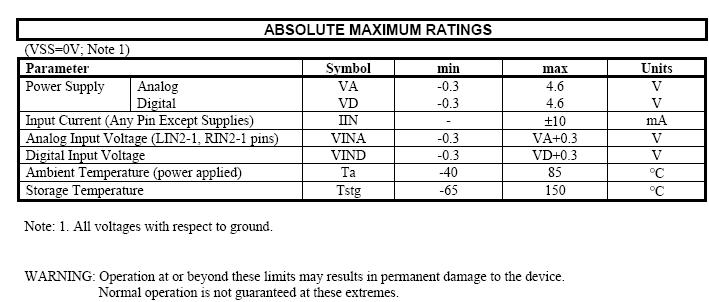

Specifications




Description

The AK5354 is a low voltage 20bit A/D converter for digital audio system. The product also includes Analog input PGA, therefore is suitable for microphone application and etc. As digital power supply of the product corresponds to 1.8V, the interface with microprocessor can operate at low voltage. Analog signal input of the AK5354 is single-ended, therefore, any external filters are not required. As the package is 16pin TSSOP, the AK5354 is a suitable for minimizing system.
