AK5355

Features:

1. Resolution: 16bits
2. Recording Functions
        • Gain Amplifier (0dB / +15dB)
        • Digital HPF for DC-offset cancellation (fc=3.4Hz@fs=44.1kHz)
3. ADC Characteristics
        • Single-ended Input
        • Input Level: 1.8Vpp@VA=3.0V (= 0.6 x VA)
        • S/(N+D): 85dB
        • DR, S/N: 91dB
4. Master Clock: 256fs/384fs/512fs
5. Audio Data Format: MSB First, 2's compliment
        • 16bit MSB justified or I2S
8. Power Supply
        • VA, VD: 2.1 ∼ 3.6V (typ. 3.0V)
9. Power Supply Current: 5mA
10. Ta = -40 ∼ 85°C
11. Package: 16pin TSSOP

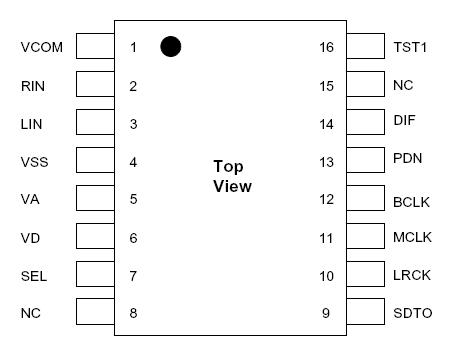

Pinout

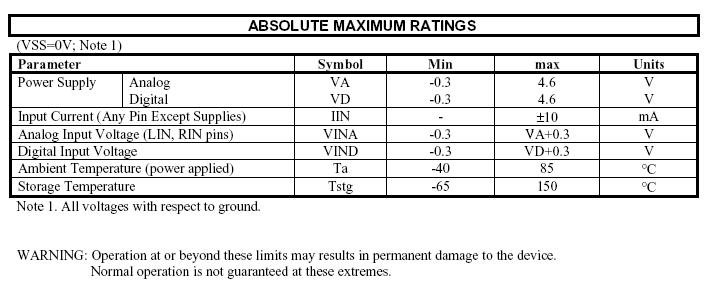

Specifications




Description

The AK5355 is a low voltage 16bit A/D converter for digital audio systems. The product also includes an Input Gain Amplifier, making it suitable for microphone applications or low-input signal levels. The analog signal input of the product is single-ended, eliminating the need for external filters. The AK5355 is housed in a space-saving 16-pin TSSOP package.
