Part Number: AK5357
Description: The AK5357 is a stereo A/D Converter with wide sampling rate of 4kHz ∼ 96kHz and is suitable for multimedia audio...
- Table of contents:
AK5357
-
Suppliers
DataSheet
General Description
AK5357 General Description
The AK5357 is a stereo A/D Converter with wide sampling rate of 4kHz ∼ 96kHz and is suitable for multimedia audio system. The AK5357 achieves high accuracy and low cost by using Enhanced dual bit techniques. The AK5357 requires no external components because the analog inputs are single-ended. The audio interface has two formats (MSB justified, I2S) and can correspond to many systems like Karaoke, surround.
AK5357 Maximum Ratings
(AGND, DGND=0V; Note 1)
Note 1. All voltages with respect to ground.
Note 2. AGND and DGND must be connected to the same analog ground plane.
WARNING: Operation at or beyond these limits may result in permanent damage to the device.Normal operation is not guaranteed at these extremes.
|
Parameter |
Symbol |
min |
max |
Units | |
| Power Supplies: |
Analog Digital |AGND DGND| (Note 2) |
VA VD GND |
−0.3 −0.3 - |
6.0 6.0 0.3 |
V V V |
| Input Current, Any Pin Except Supplies |
IIN |
- |
±10 |
mA | |
| Analog Input Voltage (AINL, AINR, CKS1 pins) |
VINA |
−0.3 |
VA+0.3 |
V | |
| Digital Input Voltage (All digital input pins) |
VIND |
−0.3 |
VD+0.3 |
V | |
| Ambient Temperature (powered applied) |
Ta |
−40 |
85 |
°C | |
| Storage Temperature |
Tstg |
−65 |
150 |
°C | |
Note 1. All voltages with respect to ground.
Note 2. AGND and DGND must be connected to the same analog ground plane.
WARNING: Operation at or beyond these limits may result in permanent damage to the device.Normal operation is not guaranteed at these extremes.
AK5357 Features
Stereo ADC
On-Chip Digital Anti-Alias Filtering
Single-ended Input
Digital HPF for DC-Offset cancel
S/(N+D): 88dB@5V, 86dB@3V for 48kHz
DR: 102dB@5V, 100dB@3V for 48kHz
S/N: 102dB@5V, 100dB@3V for 48kHz
Sampling Rate Ranging from 4kHz to 96kHz
Master Clock:
256fs/384fs/512fs/768fs (4kHz ∼ 48kHz)
256fs/384fs (48kHz ∼ 96kHz)
Input level: TTL/CMOS selectable
Master / Slave Mode
Audio Interface: 24bit MSB justified / I2S selectable
Power Supply: 2.7 ∼ 5.5V
Ta = −40 ∼ 85°C
Small 16pin TSSOP Package
AK5381 Pin-compatible
On-Chip Digital Anti-Alias Filtering
Single-ended Input
Digital HPF for DC-Offset cancel
S/(N+D): 88dB@5V, 86dB@3V for 48kHz
DR: 102dB@5V, 100dB@3V for 48kHz
S/N: 102dB@5V, 100dB@3V for 48kHz
Sampling Rate Ranging from 4kHz to 96kHz
Master Clock:
256fs/384fs/512fs/768fs (4kHz ∼ 48kHz)
256fs/384fs (48kHz ∼ 96kHz)
Input level: TTL/CMOS selectable
Master / Slave Mode
Audio Interface: 24bit MSB justified / I2S selectable
Power Supply: 2.7 ∼ 5.5V
Ta = −40 ∼ 85°C
Small 16pin TSSOP Package
AK5381 Pin-compatible

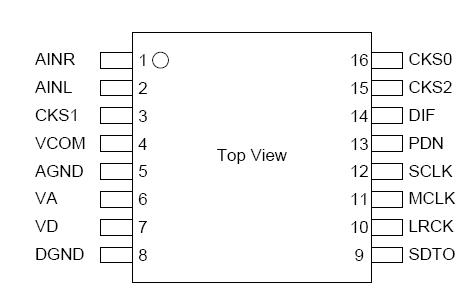

AK5357 Connection Diagram
AK5357
PDF/DataSheet Download
