AK5392

Features:

Enhanced Dual Bit ADC
Sampling Rate: 1kHz~54kHz
Full Differential Inputs
S/(N+D): 105dB
DR: 116dB
S/N: 116dB
High Performance Linear Phase Digital Anti-Alias filter
    ` Passband: 0~21.768kHz(@fs=48kHz)
    ` Ripple: 0.001dB
    ` Stopband: 110dB
Digital HPF & Offset Calibration for Offset Cancel
Master Clock: 256/384fs
Power Supply: 5V±5%(Analog), 3~5.25V(Digital)
Power Dissipation: 470mW
Package: 28pin SOP

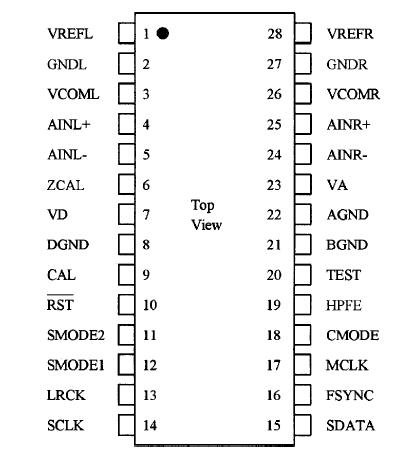

Pinout

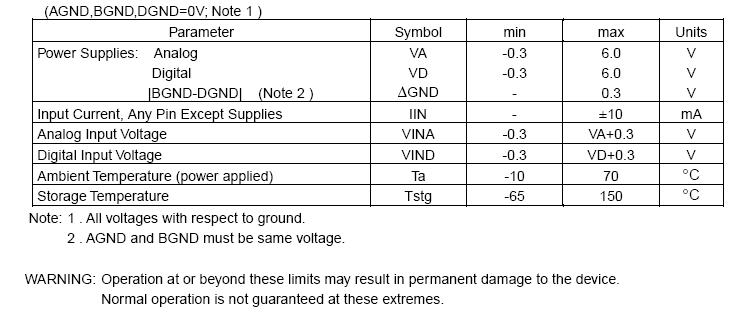

Specifications




Description

The AK5392 is a 24bit, 128x oversampling 2ch A/D Converterfor professional digital audio systems. The modulator in the AK5392 uses the new developed Enhanced Dual Bit architecture. This new architecture achieves the wider dynamic range, while keeping much the same superior distortion characteristics as conventional Single Bit way. The
AK5392 performs 116dB dynamic range, so the device is suitable for professional studio equipments such as digital
mixer, digital VTR etc.
